4: Multi-frequency capacitance-voltage unit Model 4200A-SCS Parameter Analyzer
4-16 4200A-901-01 Rev. C / February 2017
5. If you selected Custom cable length, select Advanced Compensation and select Measure
Custom Cable Length. Follow the on-screen instructions.
6. If you are using a switching matrix, close the matrix switches that connect the CVU to the open.
Refer to Switch matrix control (on page A-16
).
7. If it is not open, select Advanced Compensation.
8. Next to Measure Load, enter the value of the load in ohms.
9. Select Measure Load.
10. Follow the instructions.
11. Select OK.
Compensation data
You can view the compensation data. Clarius lists R and jX compensation values for every test
frequency and measurement range for open, short, and load.
To view the data generated by connection compensation:
1. In Clarius, select Tools.
2. Select CVU Connection Compensation.
3. Select Advanced Compensation.
4. Select the data you would like to display: Open, Short, or Load.
5. Select View Compensation Data.
6. Select the HI tab to review the high side values.
7. Select the LO tab to review the low side values.

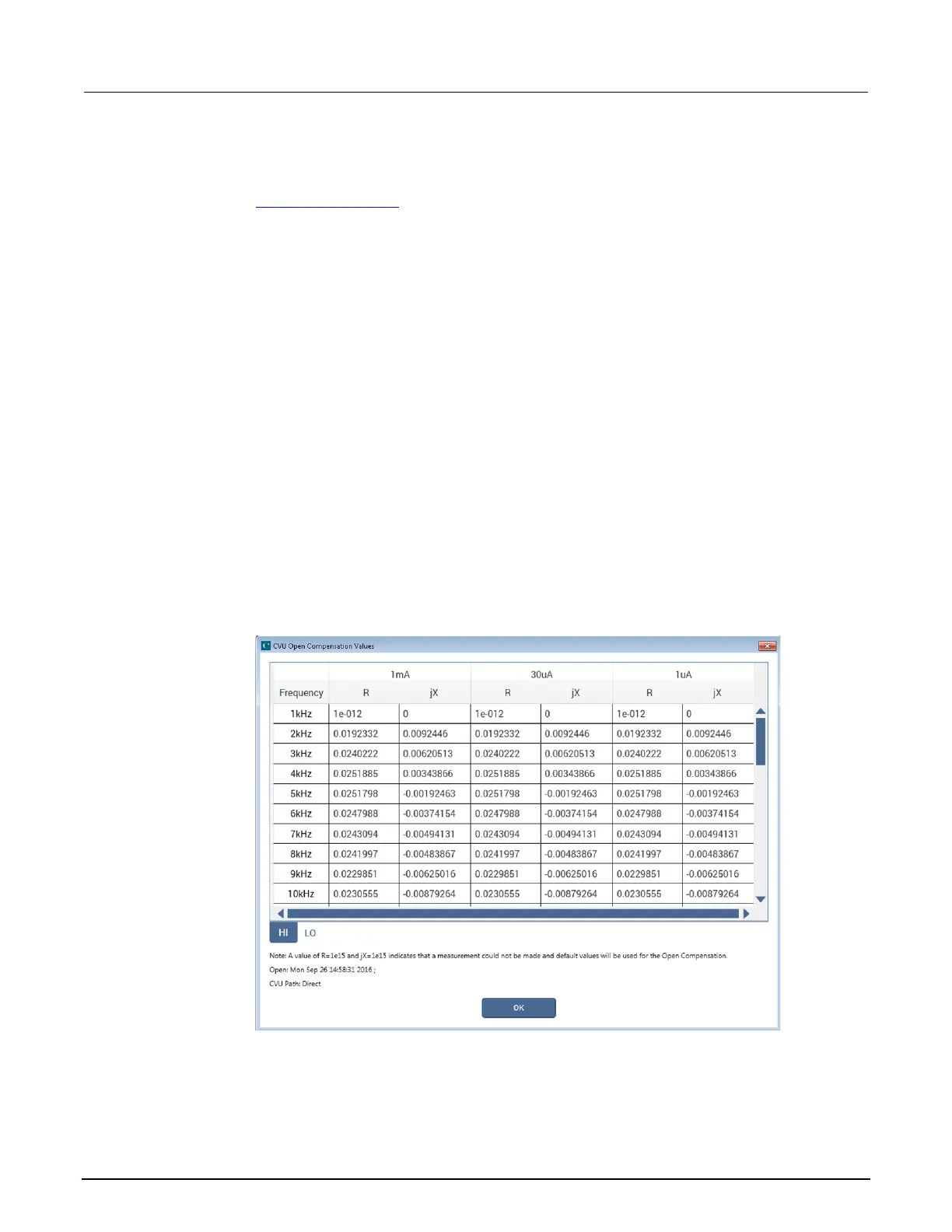

Figure 94: Open compensation values example
