5: Pulse measure and pulse generator units Model 4200A-SCS Parameter Analyzer
5-16 4200A-901-01 Rev. C / February 2017
Connections to prober or test fixture bulkhead connectors
The 4200-PMU-Prober-Kit (available from Keithley Instruments) is a collection of standard and
custom connectors and accessories used to connect the pulse generator to a common variety of
probe stations. This kit can also be used for pulse card connections to a test fixture.
The next figure shows an example of how a PMU or PGU can be connected to a triaxial connector of
a prober or test fixture.
If connecting to a prober or test fixture that uses BNC connectors, adapter C is not used.

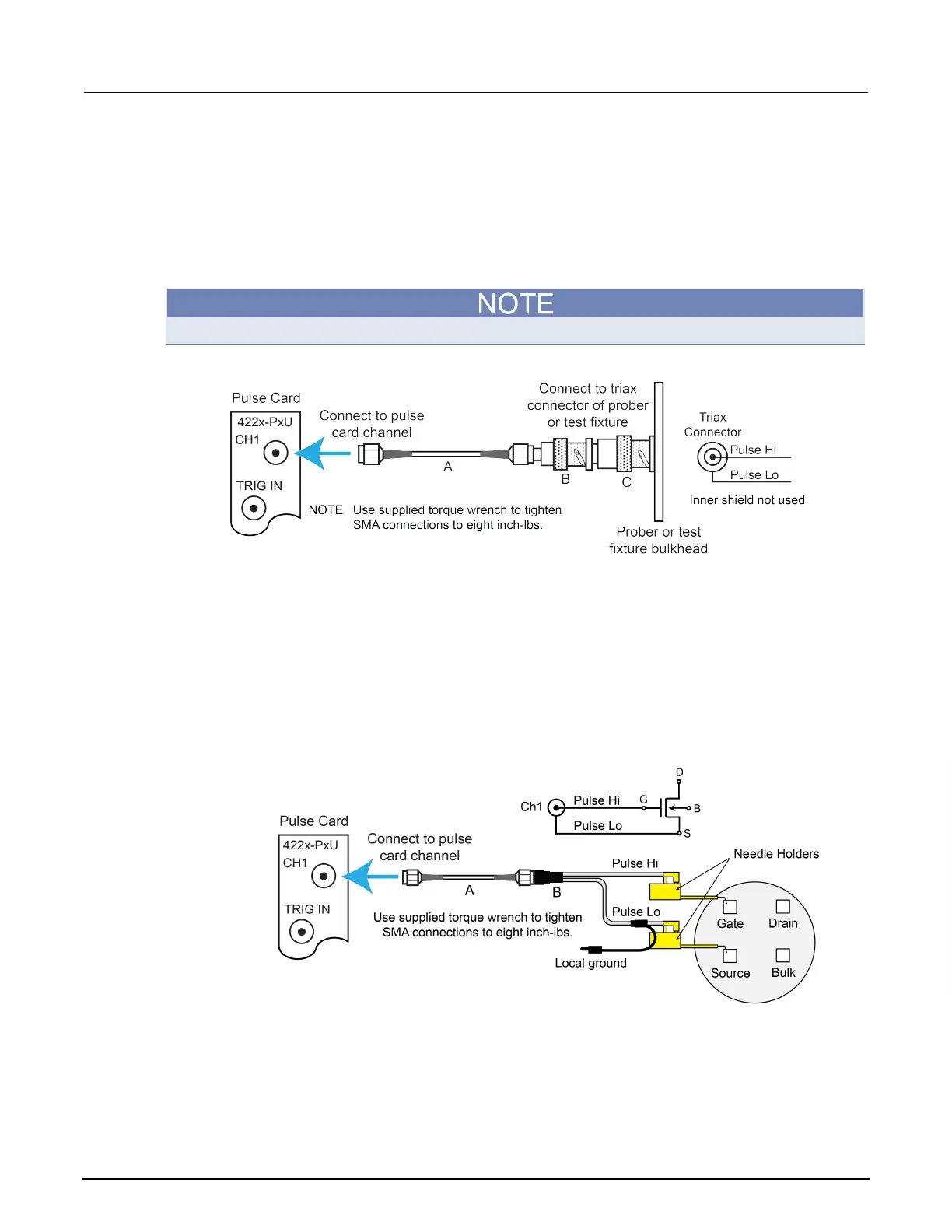

Figure 154: Pulse card connections to triax prober or test fixture
A. White SMA cable (2 m/6.5 ft, included with the PGU and PMU)
B. SMA female-to-BNC male (included with the 4200-Prober-Kit)
C. BNC female-to-three-lug triax male (included with the 4200-Prober-Kit))
Using an SMA to SSMC adapter cable to connect pulse card to DUT
The next figure shows an example of how to make pulse card connections to the device under test
(DUT) using the supplied adapter cable.
Figure 155: Pulse card connections using the SMA to dual SSMC adapter cable
A. White SMA cable (2 meters / 6.5 feet, included with the PGU and PMU)
B. SMA to SSMC Adapter Cable (4200-PRB-C, included with the PGU and PMU)
The needle holders shown in the previous figure are supplied by the user.
