6. Click Set X, Y die size button in the Setup Options window. The Set X, Y Die size dialog box
opens.
7. Set X, Y Die size button.
8. If die size is known, enter it. If not known, calculate (see Calculating die sizes (on page H-16
)).
Set spline pattern (optional)
The order of selection of the die, the spline pattern (change using edit die program), and the
reference die location determine test order sequence.
To set spline pattern:
1. Click the Edit Die Program Parameters button on the Die Program Tools window of pcWfr. The
Edit Die Program Parameters dialog box opens.

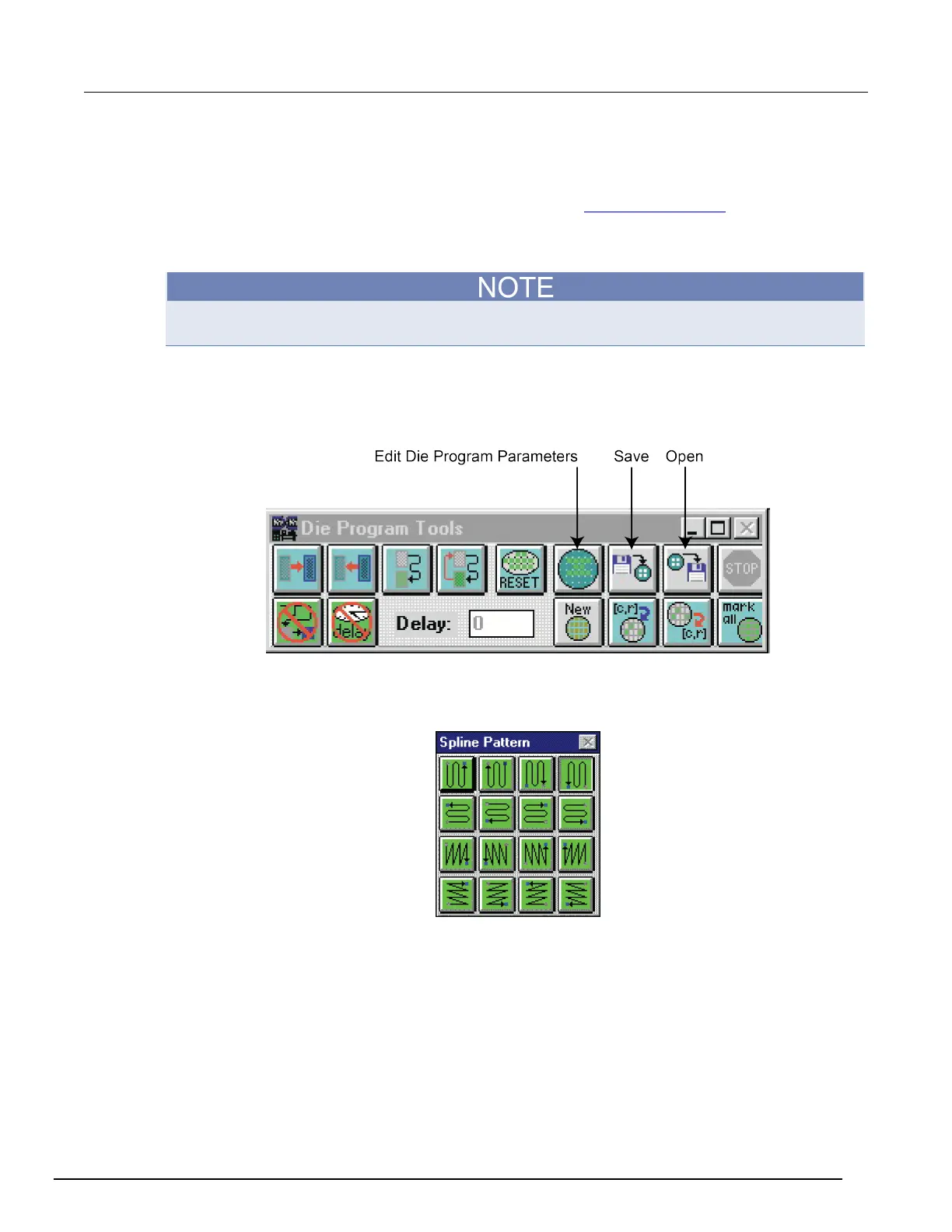

Figure 711: Die Program Tools window
2. Click the Spline Pattern button on the Edit Die Program Parameters dialog box. The Spline
Pattern window will open.
Figure 712: Spline Pattern window
