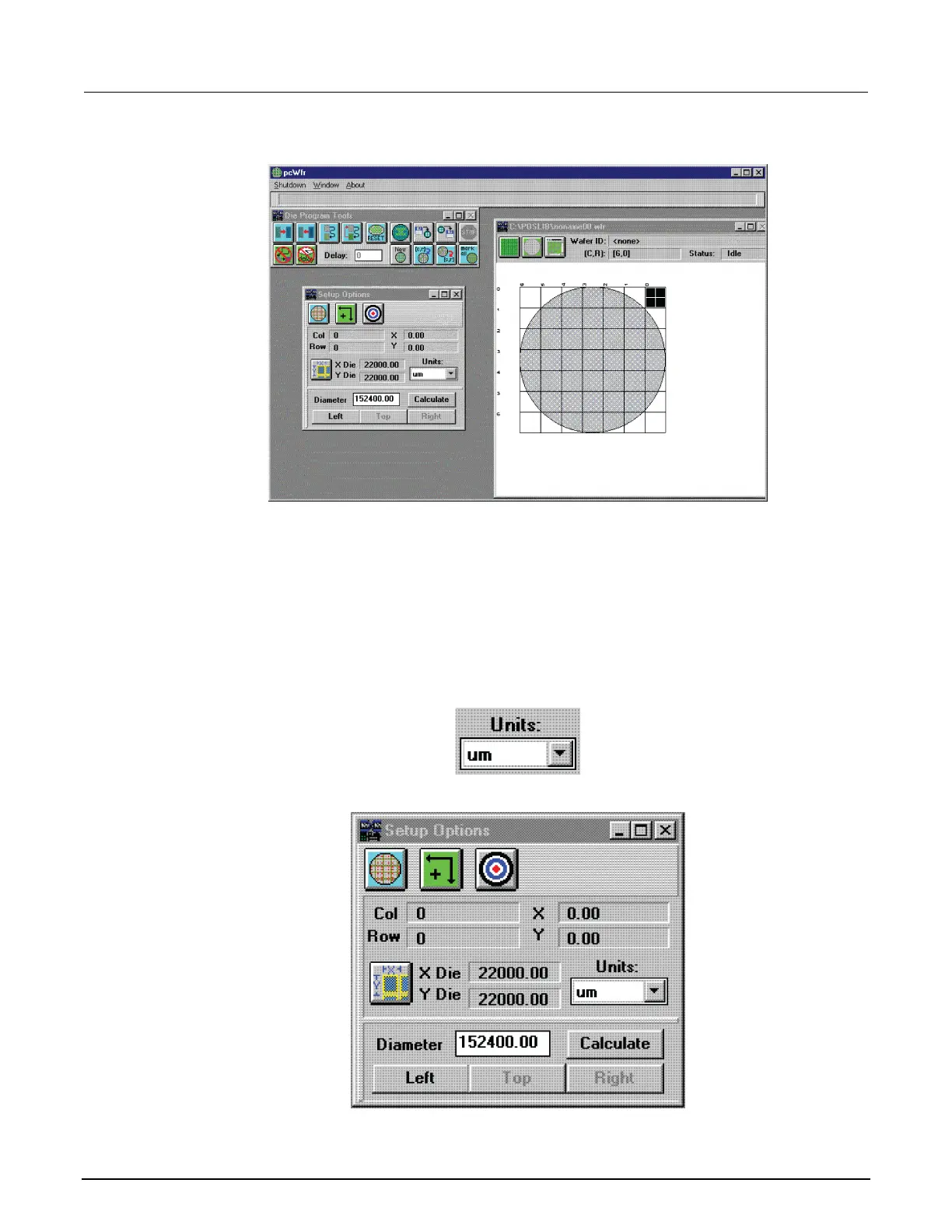

Figure 708: PcWfr window
3. Set units of measure (microns or mils).
4. Calculate the wafer diameter:
a. Move the pins to the left edge of the wafer.
b. Click Left on the Setup Options window.
c. Repeat for the top and right edges of the wafer, clicking the respective buttons after each movement.
d. Click the Calculate button.
5. Set units to either microns or mils from the units of measure Units list in Setup Options window.
See the following two figures.
Figure 709: Units of measure list
Figure 710: Setup Options window
