Appendix

G: Using a Cascade Microtech PA200 Prober Model 4200A-SCS Parameter Analyzer

Reference Manual

G-14 4200A-901-01 Rev. C / February 2017

2. From the ProberBench NT window, select the WaferMap file.

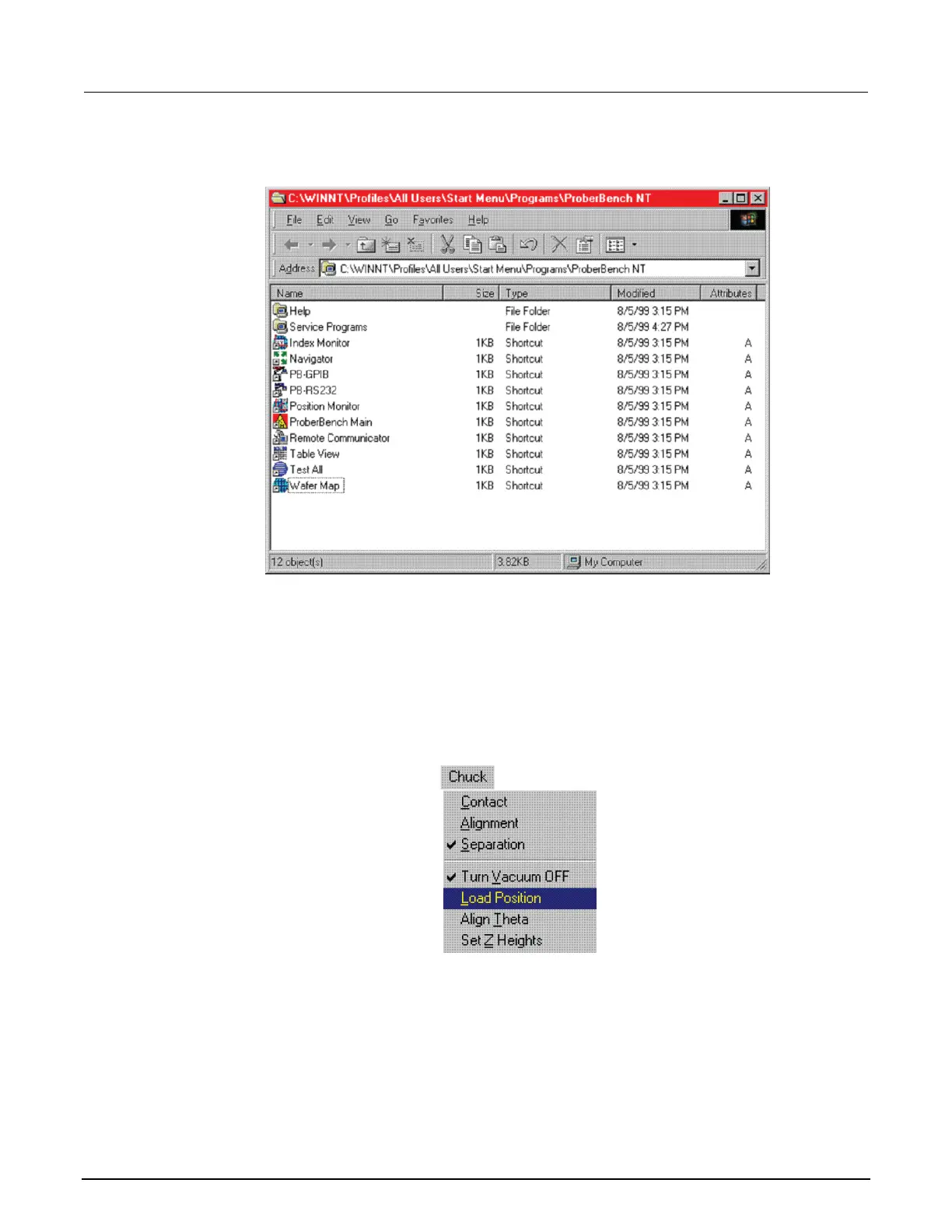

Figure 649: ProberBench NT window

3. From the WaferMap window, select and open the appropriate file.

Load, align, and contact the wafer

Using the ProberBench NT computer:

1. From the WaferMap Chuck menu, select Load Position. This brings the chuck to the front of the

prober.

Figure 650: Chuck menu
