Example of using the editor
This example demonstrates edits to the pmu-1ch-wfm UTM from the pmu-dut-example project.
To edit the UI for this test:
1. Make sure the UTM UI Editor is enabled. See Allow access to the UTM UI editor (on page 6-110).
2. Open the pmu-dut-examples project from the Project Library.
3. Select the pmu-1ch-wfm test.
4. Select Configure.
5. Right-click anywhere in the Configure pane to display the Edit UTM UI button, shown below.

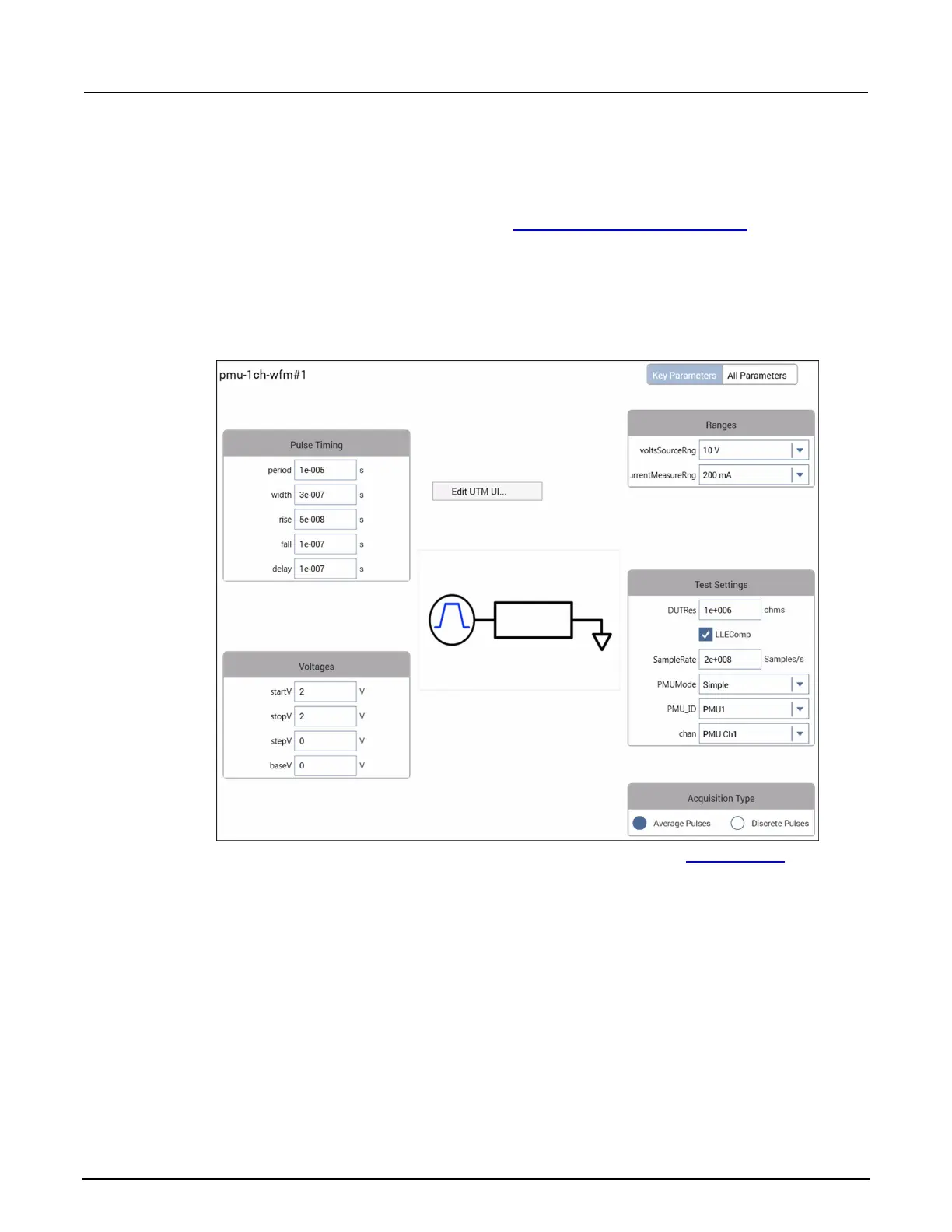

Figure 301: Start the UTM UI editor (right-click the Configure pane)
6. Select Edit UTM UI. The UTM UI Editor dialog box opens, as shown in UTM UI Editor (on page
6-137).
