-SCS Parameter Analyzer Reference Manual Appendix H:
Using a Micromanipulator 8860 Prober
4200A-901-01 Rev. C / February 2017 H-7

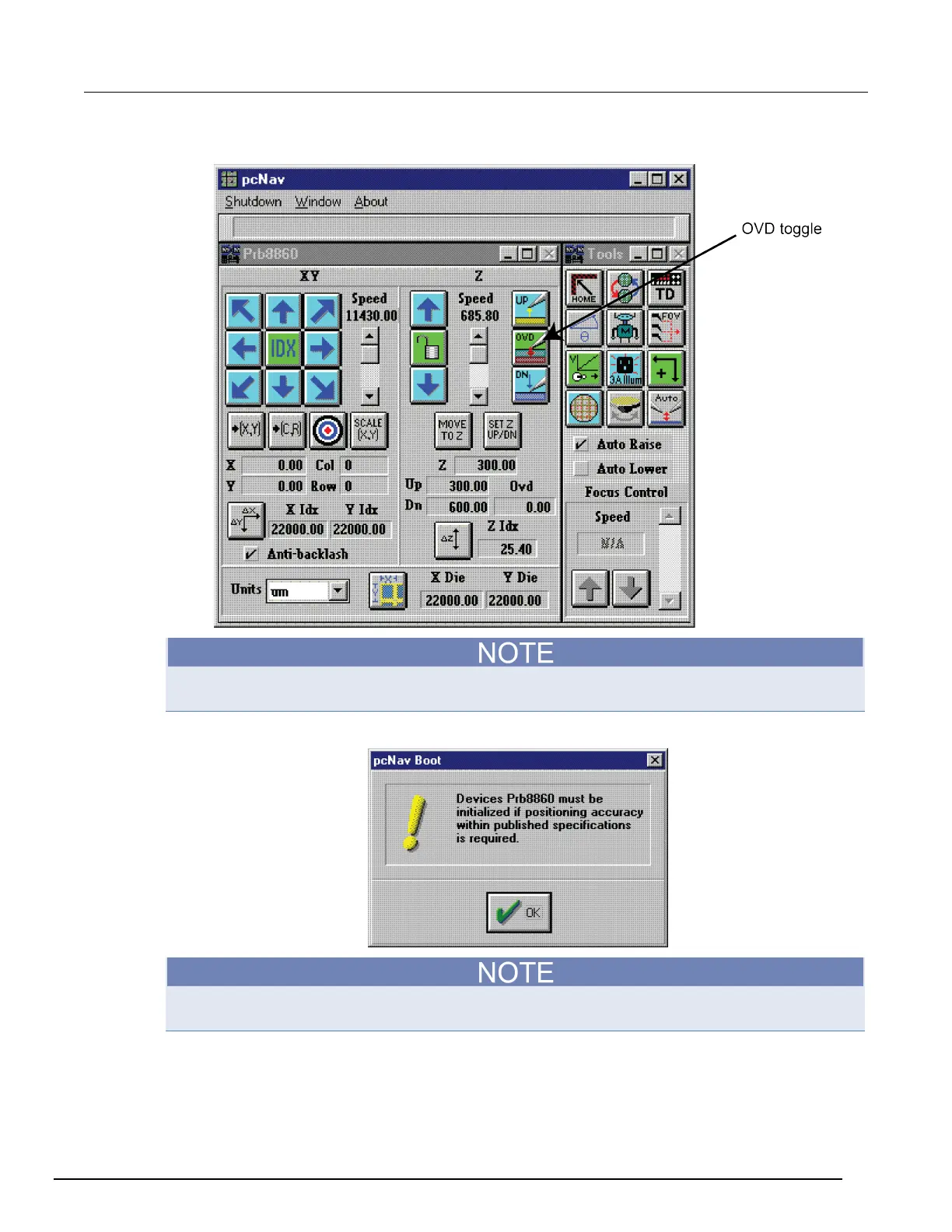

Figure 682: pcNav window
When starting pcNav for the first time, the warning in the following figure is displayed. Click OK and
continue the configuration (the device will be initialized when the chuck is homed).
Figure 683: pcNav Boot warning
Since the platen moves to make or break contact between the pins and pad, selecting Auto Raise
will automatically separate the pins from the pads. Auto Lower will allow automatic contact.
2. Select Auto Raise on the pcNav Tools window.
3. Select Anti-backlash on the pcNav Prb8860 window.
