2: Connections and configuration Model 4200A-SCS Parameter Analyzer
2-6 4200A-901-01 Rev. C / February 2017
Basic device connections for SMUs
The next figures show the basic device connections to the 4200A-SCS rear panel, independent of the
device mounting, test fixtures, and probers.

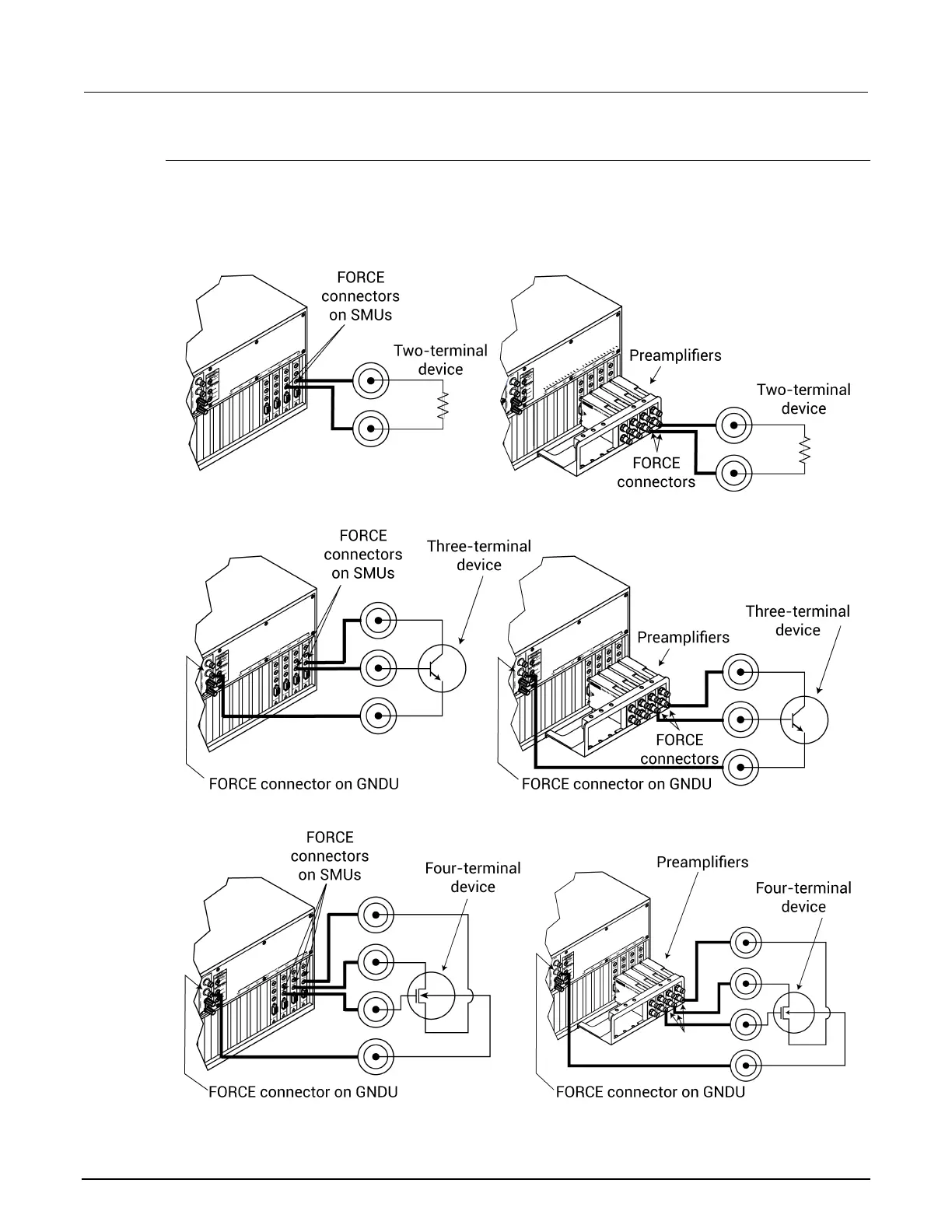

Figure 8: Two-terminal device connections to SMUs and preamplifiers
Figure 9: Three-terminal device connections to SMUs and preamplifiers
Figure 10: Four-terminal device connections to SMUs and preamplifiers
