Appendix

B: Using a Model 590 C-V Analyzer Model 4200A-SCS Parameter Analyzer

Reference Manual

B-10 4200A-901-01 Rev. C / February 2017

7. Change the test parameters as needed.

8. Execute the test by clicking Run.

This test uses the CvSweep590 user module. For details on this test description, see CvSweep590

user module (on page B-27).

If you use the default parameters, this test causes the 590 to do a −4 V to +6 V staircase sweep

using 50 mV steps. The figure below shows the default sweep.

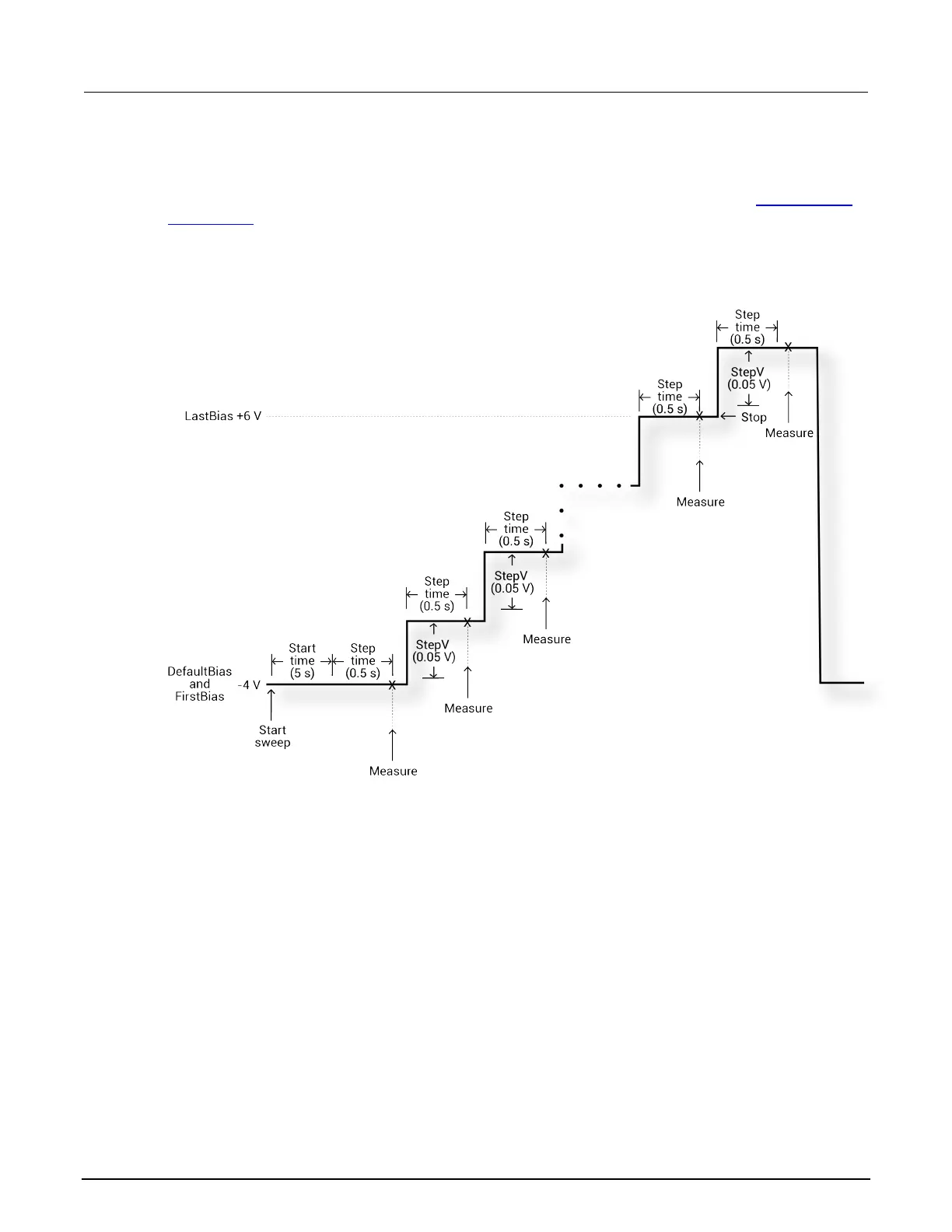

Figure 558: C-V linear staircase sweep
