-SCS Parameter Analyzer Reference Manual Appendix D: Using a Model 82 C-
4200A-901-01 Rev. C / February 2017 D-11
2. Ensure that the CabCompFile field has the same file directory path that is used in Enter and save
capacitance source values (SaveCableCompCaps82) (on page D-10).
3. Set the other fields to 8.
4. Click Run. The calibration source values entered into the action are placed into its spreadsheet.
5. Select Analyze. The sheet displays the values. An example spreadsheet is shown here.

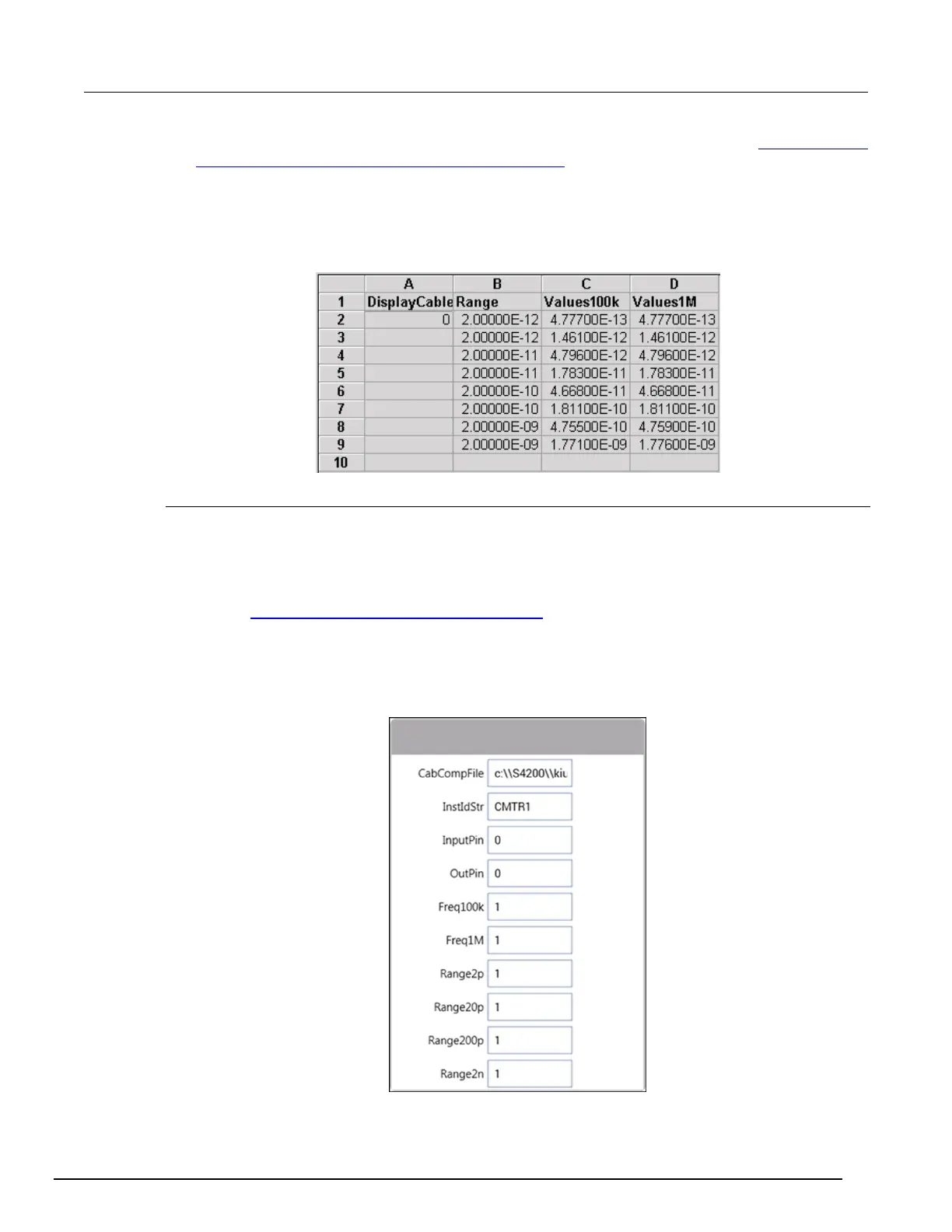

Figure 587: display-cap-file spreadsheet with capacitor source values
Compensate for cable capacitance (CableCompensate82)
To compensate for cable capacitance:
1. In the project tree, select cable-compensate or cablecomp.
2. Select Configure.
3. Ensure that the CabCompFile field of the parameter list has the same file directory path that is
used in Enter and save capacitance source values (on page D-10
).
4. Enable or disable cable compensation: Use the frequency and range fields to either disable (0) or
enable (1) cable compensation for the test frequencies and ranges. The following figure shows
cable compensation enabled for all ranges and test frequencies.
Figure 588: CableCompensate82 user module
