-SCS Parameter Analyzer Reference Manual Appendix D: Using a Model 82 C-
4200A-901-01 Rev. C / February 2017 D-15
Simultaneous C-V sweep
The Model 82 uses the Models 595 and 590 to perform simultaneous C-V measurements. Refer to
Simultaneous C-V measurements (on page D-4
) for detail on simultaneous C-V measurements.
This example assumes that the Model 82 is connected directly to the DUT. The DUT could be a
device installed in a test fixture, or a substrate on a wafer.
To do a simultaneous C-V sweep:
1. In the project tree, select cvsweep.
2. Select Configure.
3. Modify the test parameters as needed. Refer to SIMCVsweep82 user module (on page D-44
) for
definitions.
4. Select Run.
If you use the parameters shown in the figure below, the Model 82 performs a −3 C to +3 V staircase
sweep using 20 mV steps, delaying 70 ms on each step.

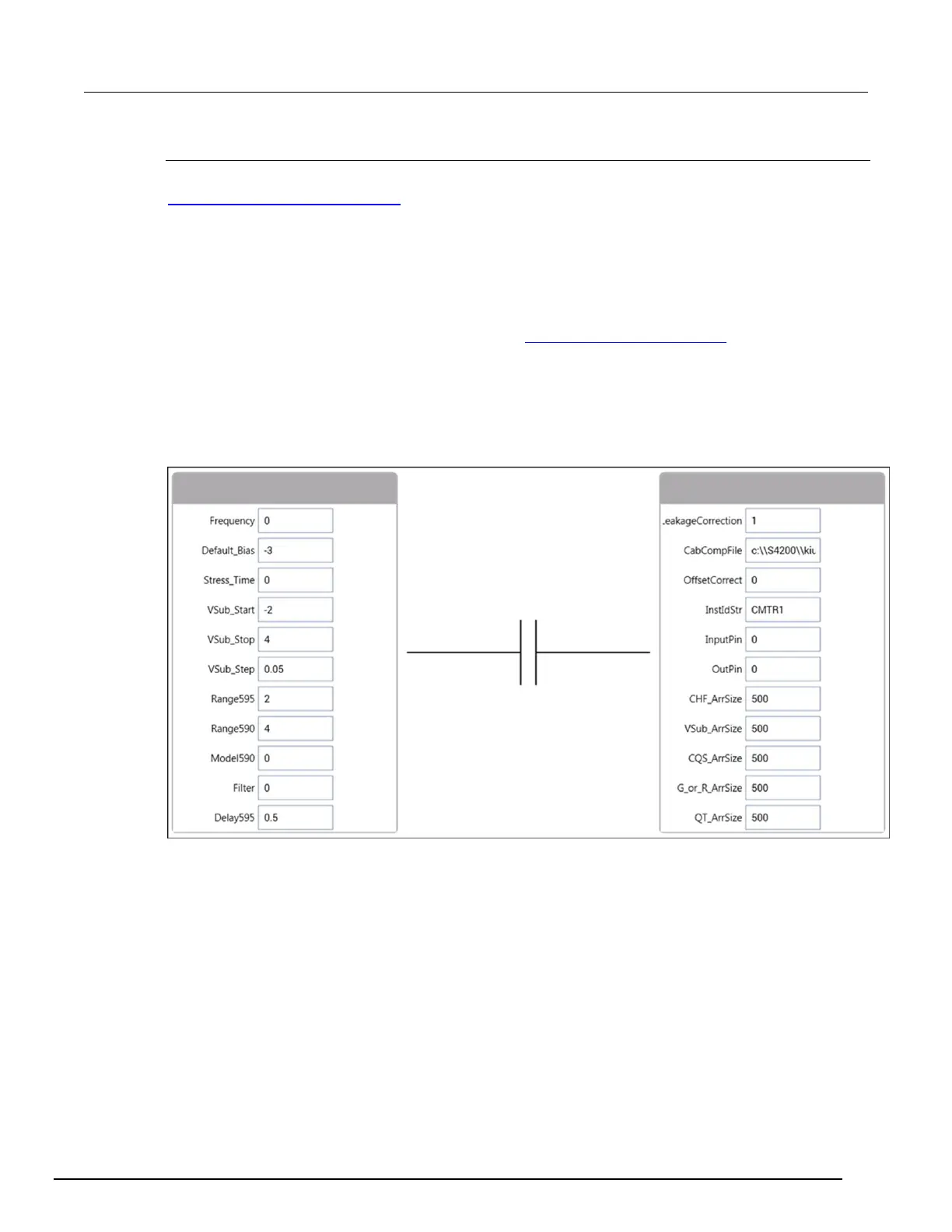

Figure 593: SIMCVsweep82 user module
