Keithley 4200A-SCS Reference Manual

Model 4200A
-SCS Parameter Analyzer Reference Manual Appendix E: Using a Keysight 8110A/8111A Pulse Generator
4200A-901-01 Rev. C / February 2017 E-7
Details
The PguSetup8110 user module defines the pulse timing and voltage settings. Once defined, the
pulse can be triggered using the PguTrigger8110 user module.

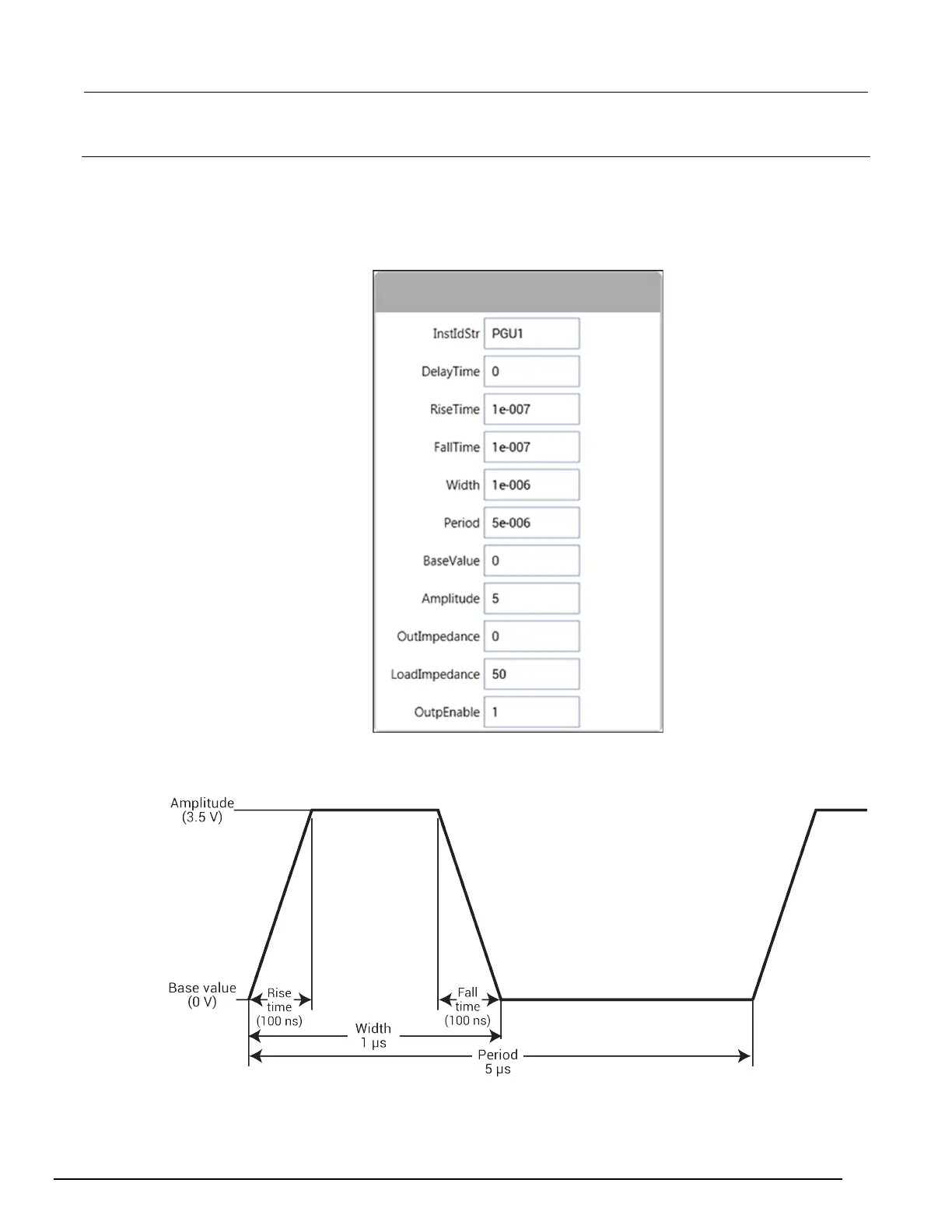

The following figure shows the default parameters for pgu1-setup UTM.
Figure 619: PguSetup8110 (pgu1-setup UTM)
The following figure shows the output pulse for the default UTM setup.
Figure 620: pgu1-setup UTM pulse specifications
