Keithley 4200A-SCS Reference Manual

Section
4: Multi-frequency capacitance-voltage unit Model 4200A-SCS Parameter Analyzer
Reference Manual
4-32 4200A-901-01 Rev. C / February 2017
Another configuration sources AC drive voltage to the CVH1 terminal and sources DC bias voltage to
the CVL1 terminal. AC current is measured at CVL1.

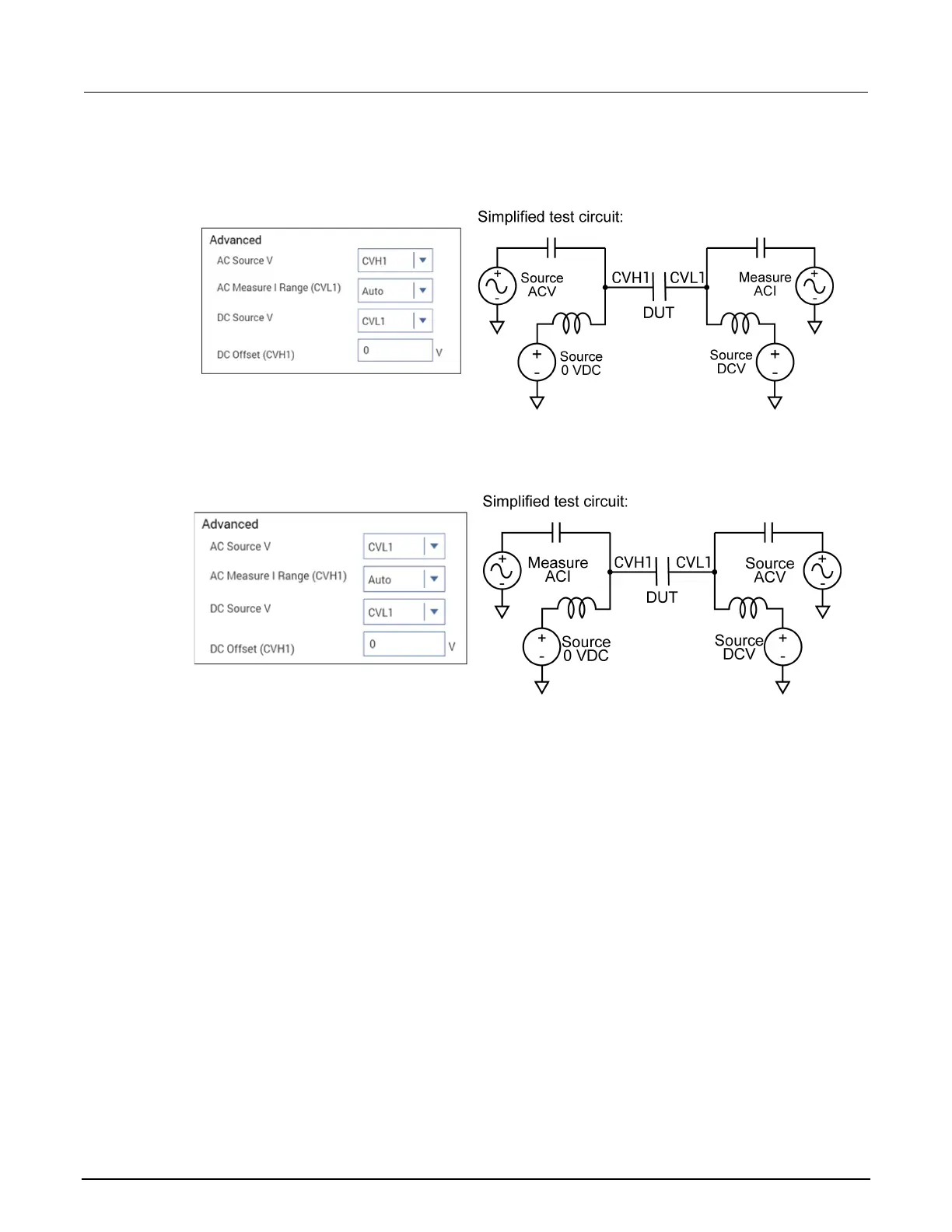

Figure 115: ACV source applied to CVH1 and DC bias applied to CVL1
The following settings source AC drive voltage and DC bias voltage to the CVL1 terminal. AC current
is measured at CVH1.
Figure 116: ACV source and DCV bias applied to CVL1
