G: Using a Cascade Microtech PA200 Prober Model 4200A-SCS Parameter Analyzer

Reference Manual

G-22 4200A-901-01 Rev. C / February 2017

5. From the View menu, select Die Map.

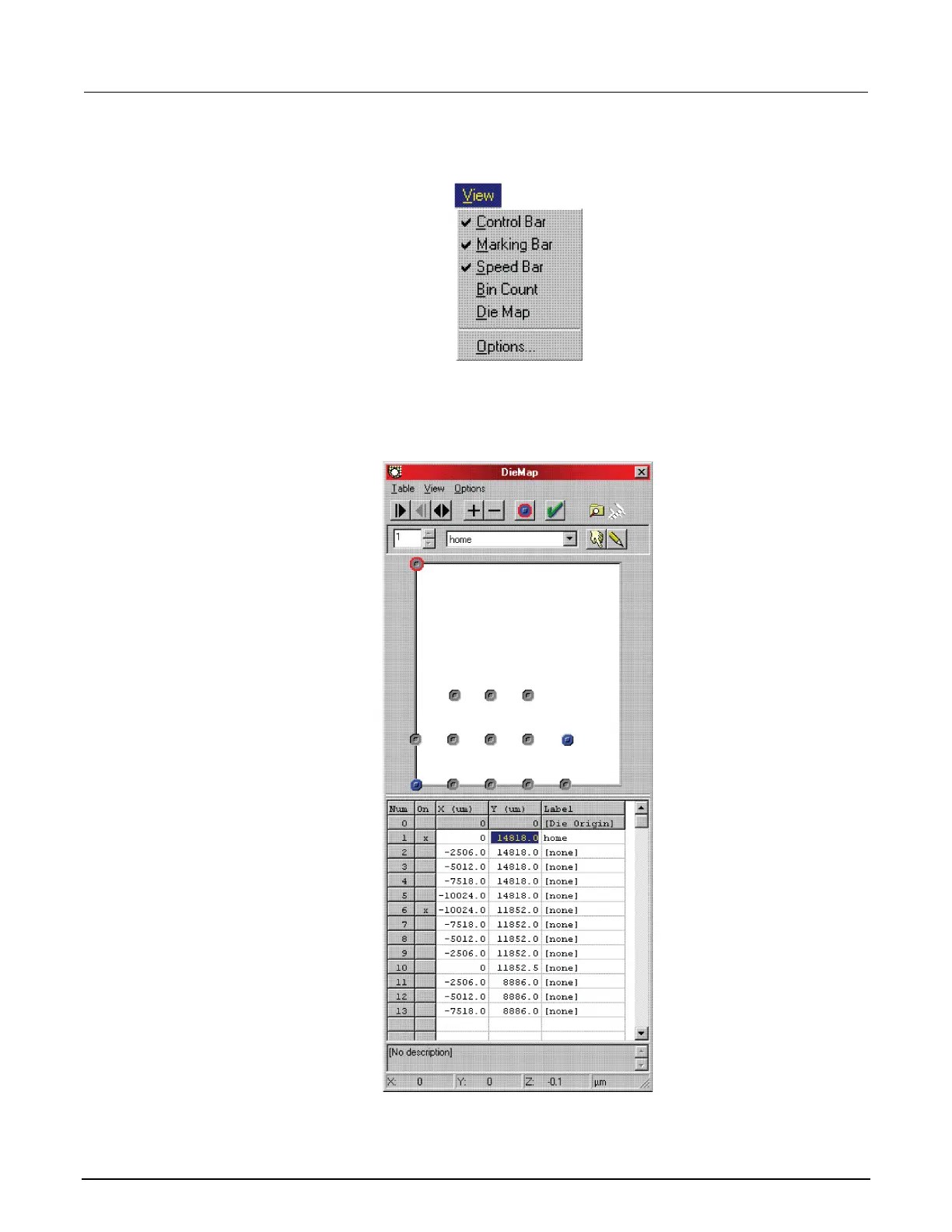

Figure 664: View menu

6. Set up the die map.

7. From the View menu, select the Table editor. The spreadsheet portion of the Die Map is

displayed.

Figure 665: DieMap dialog

Default Chapter4
