Keithley 4200A-SCS Reference Manual

Appendix
K: Using a Signatone CM500 Prober Model 4200A-SCS Parameter Analyzer
Reference Manual
K-2 4200A-901-01 Rev. C / February 2017
Set up communications
The Signatone CM500 prober is configured for GPIB communications only. Make sure the prober
configuration is set up properly for the GPIB communications interface.
To set up communications:
1. Double-click the CM500 icon on the Windows desktop. The prober initializes the wafer XY stage,
theta, and Z chuck.

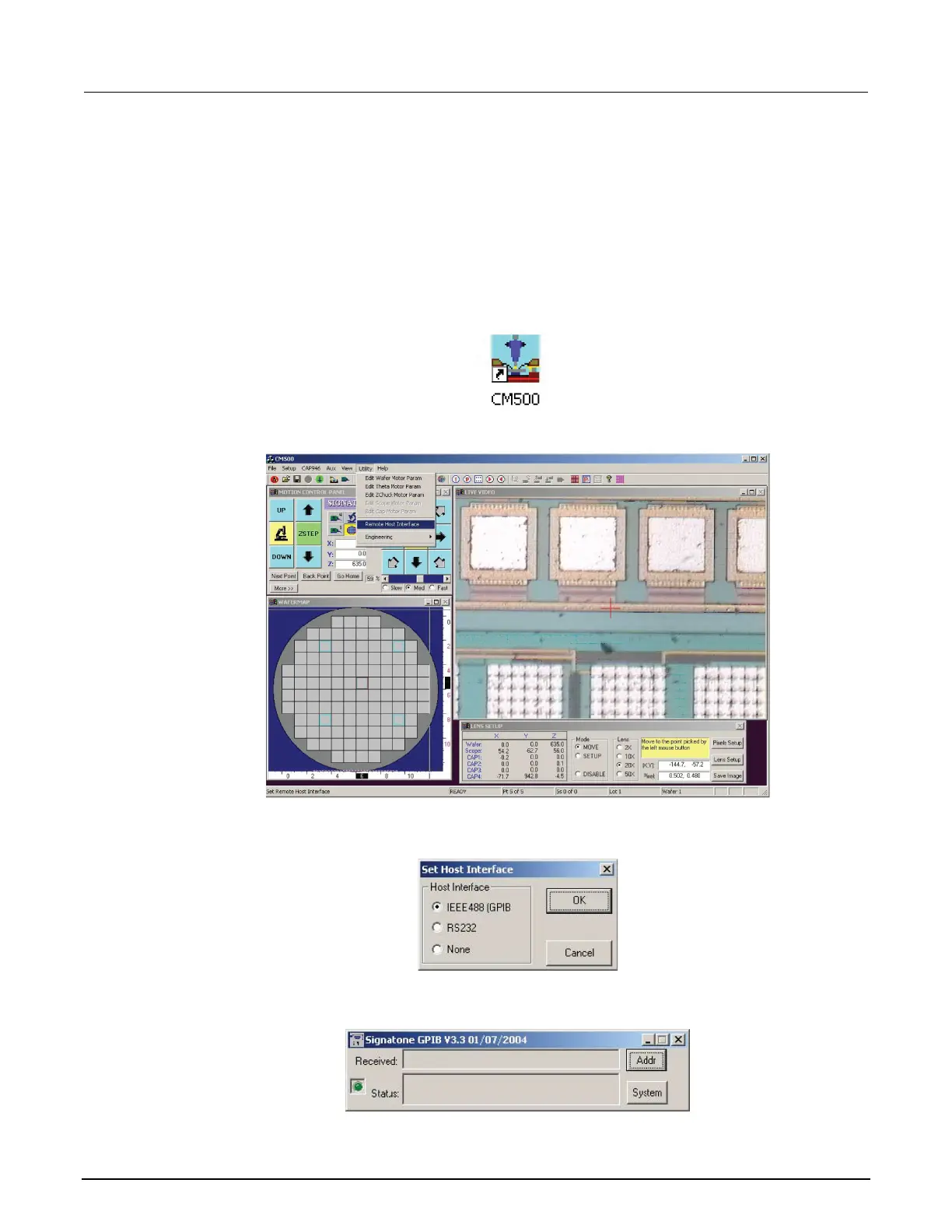

Figure 789: CM500 icon
Figure 790: CM500 Setup GPIB screen
2. Select the Utility menu and run the Remote Host Interface command.
Figure 791: Select Host Interface
3. Select the IEEE488 Host Interface. The Signatone GPIB driver window opens.
Figure 792: Signatone GPIB driver window
