Model

4200A-SCS Parameter Analyzer Reference Manual Appendix K:

Using a Signatone CM500 Prober

4200A-901-01 Rev. C / February 2017 K-17

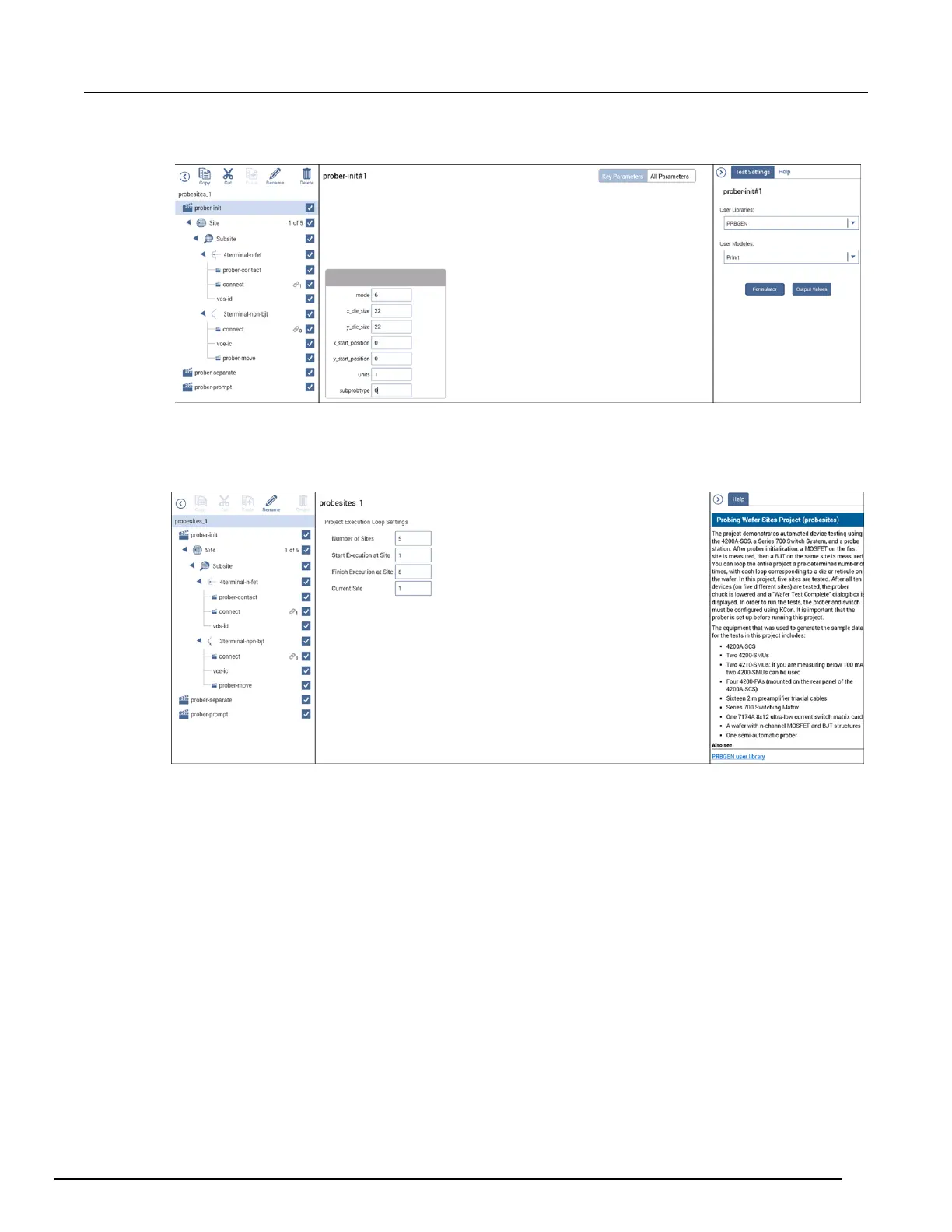

Figure 824: Set prober-init mode parameters

8. In the project tree, select probesites.

9. Choose Run to execute the entire project.

Figure 825: Run project
