4: Multi-frequency capacitance-voltage unit Model 4200A-SCS Parameter Analyzer

Reference Manual

4-66 4200A-901-01 Rev. C / February 2017

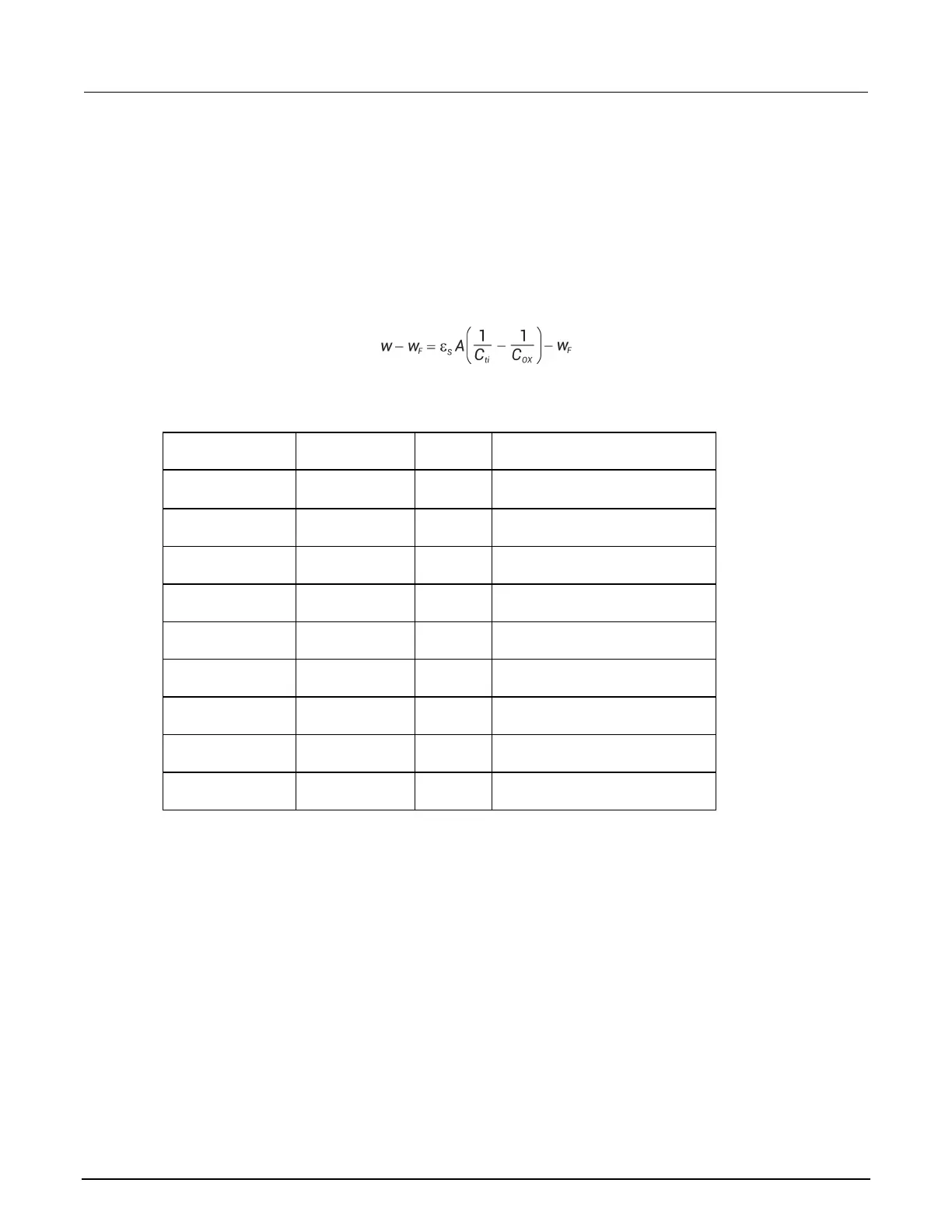

Formula: WWF

Formula name: WWF (W-WF)

Units: cm

Description: Depletion depth (W-WF computation).

Formulator entry:

WWF = ES*AREA*(1/CP_GB-1/COX)-WF

Simplified equation:

Constants

Constant

Default value

Units

Description

AREA

0.010404

Gate area of device

DOPETYPE

none

= P-type,

-1

= N-type

EBG

1.12

- Semiconductor energy gap

EOX 3.4e-13 F / cm

- Permittivity of oxide

1.03e-12

F / cm

- Semiconductor permittivity

1.45e+010

-3

- Intrinsic carrier concentration

TEMP

300

Test temperature

4.15

- Metal work function

WS 4.05 V

- Silicon electron affinity
