Keithley 4200A-SCS Reference Manual

Model 4200A
-SCS Parameter Analyzer Reference Manual Section 5: Pulse measure and pulse generator units
4200A-901-01 Rev. C / February 2017 5-13
You can also connect a two-terminal device to the two channels of a PMU, as shown in the next
figure. In this case, channel 1 will source/pulse voltage, and channel 2 will measure the resulting
current. Make sure you connect the shields of the SMA cables close to the device under test. This
method avoids problems of capacitive charging (see PMU capacitive charging/discharging effects
(on
page 5-42)).

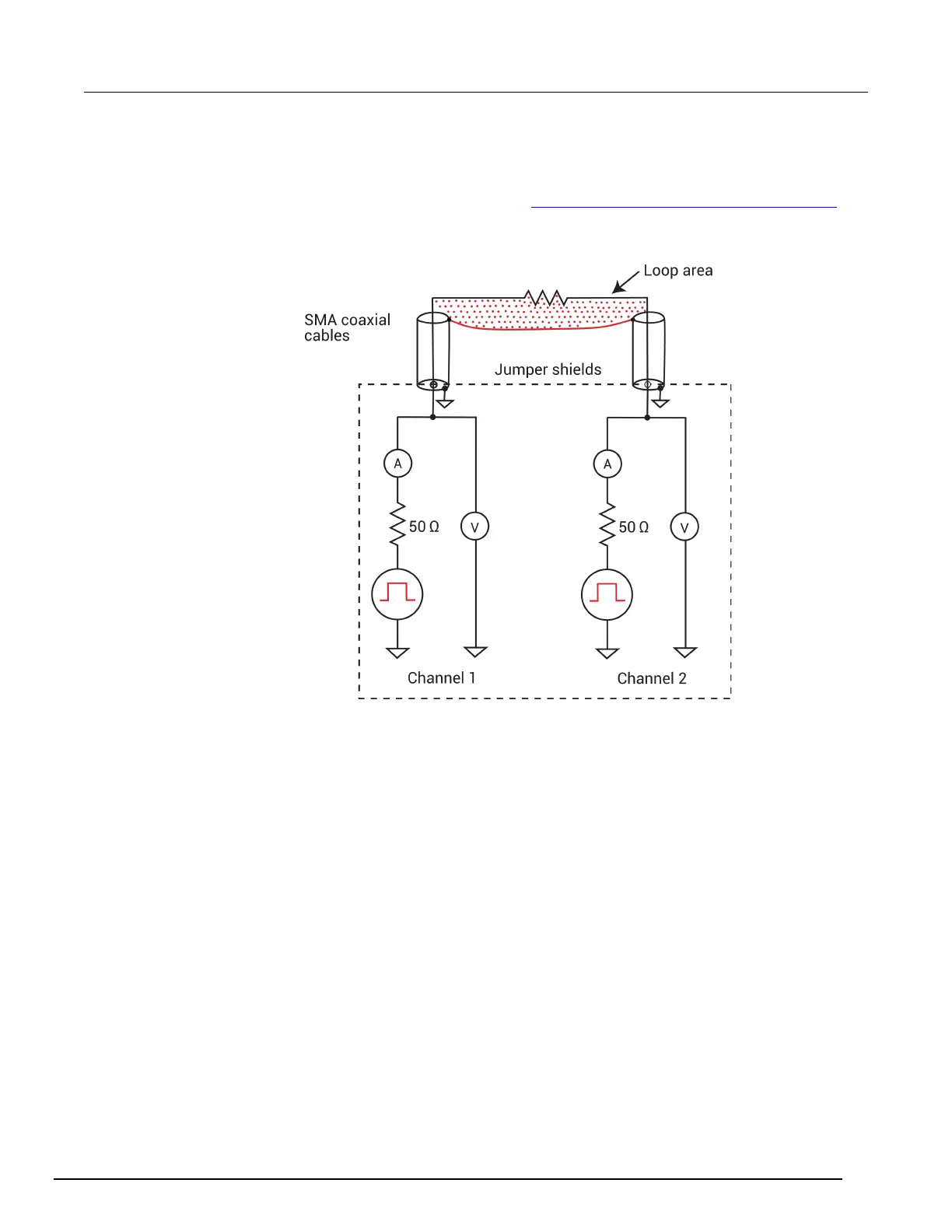

Figure 151: Two-terminal device connections to a PMU using both channels
