-SCS Parameter Analyzer Reference Manual Section 6:
4200A-901-01 Rev. C / February 2017 6-5
Organize items in the project tree
The project tree on the left side of the Clarius window displays the items in your project, including
devices, tests, actions, and sites. The project tree for the default project is shown in the figure below.
The settings for the item you select in the project tree are displayed when you select Configure from
the top bar. The test data for the item is displayed when you select Analyze.
When you run a test, the item that is highlighted runs. If the item is a project, site, subsite, or device,
all checked items in the hierarchy below the highlighted item run.

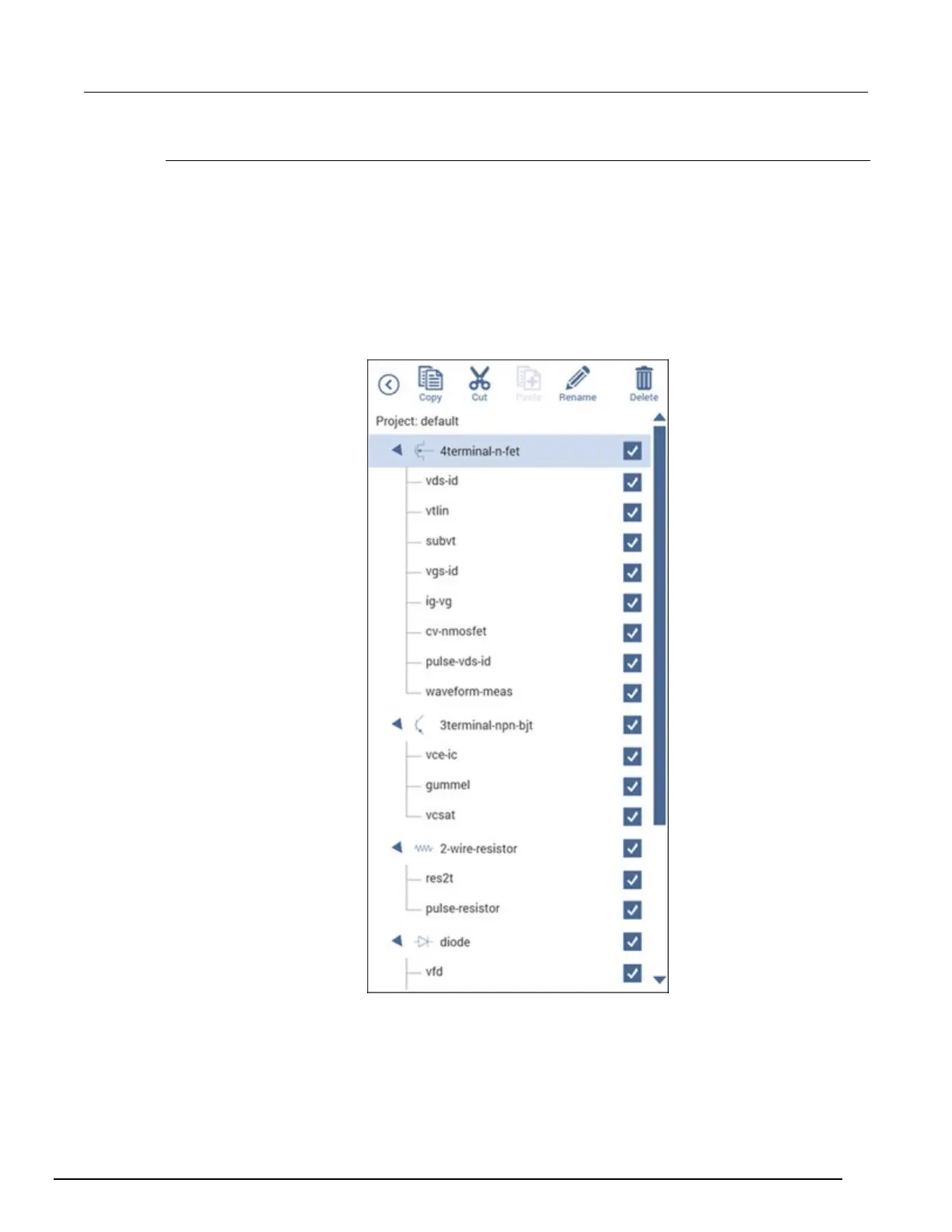

Figure 213: Project tree for the default project
