The figure below shows some Pulse Mode examples.

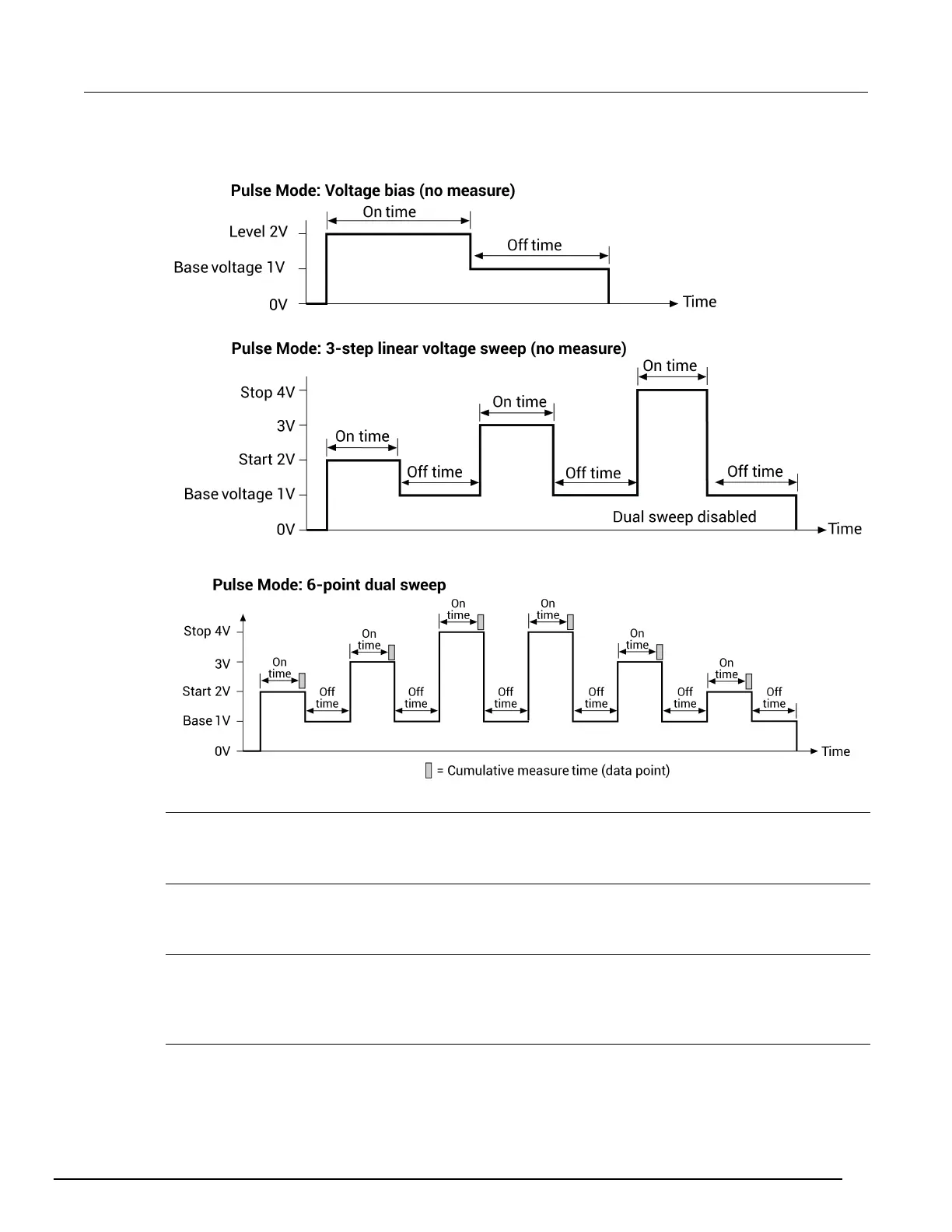

Figure 234: Pulse Mode examples
On Time
Available when Pulse Mode is selected. The amount of time that the pulse is on (5 ms to 20 s).
Off Time
Available when Pulse Mode is selected. The amount of time that the pulse is off (5 ms to 20 s).
Base Voltage
Available when Pulse Mode is selected. The voltage level that the instrument sources when the pulse
output is off. The level that you can set depends on the present source range.
Base Current
Available when Pulse Mode is selected. The current level that the instrument sources when the pulse
output is off. The level that you can set depends on the present source range.
