6: Clarius Model 4200A-SCS Parameter Analyzer
6-68 4200A-901-01 Rev. C / February 2017
DC Bias - PMU
When DC Bias operation mode is selected, the PMU outputs the DC base voltage. The next figure
shows a representation of a DC voltage waveform.

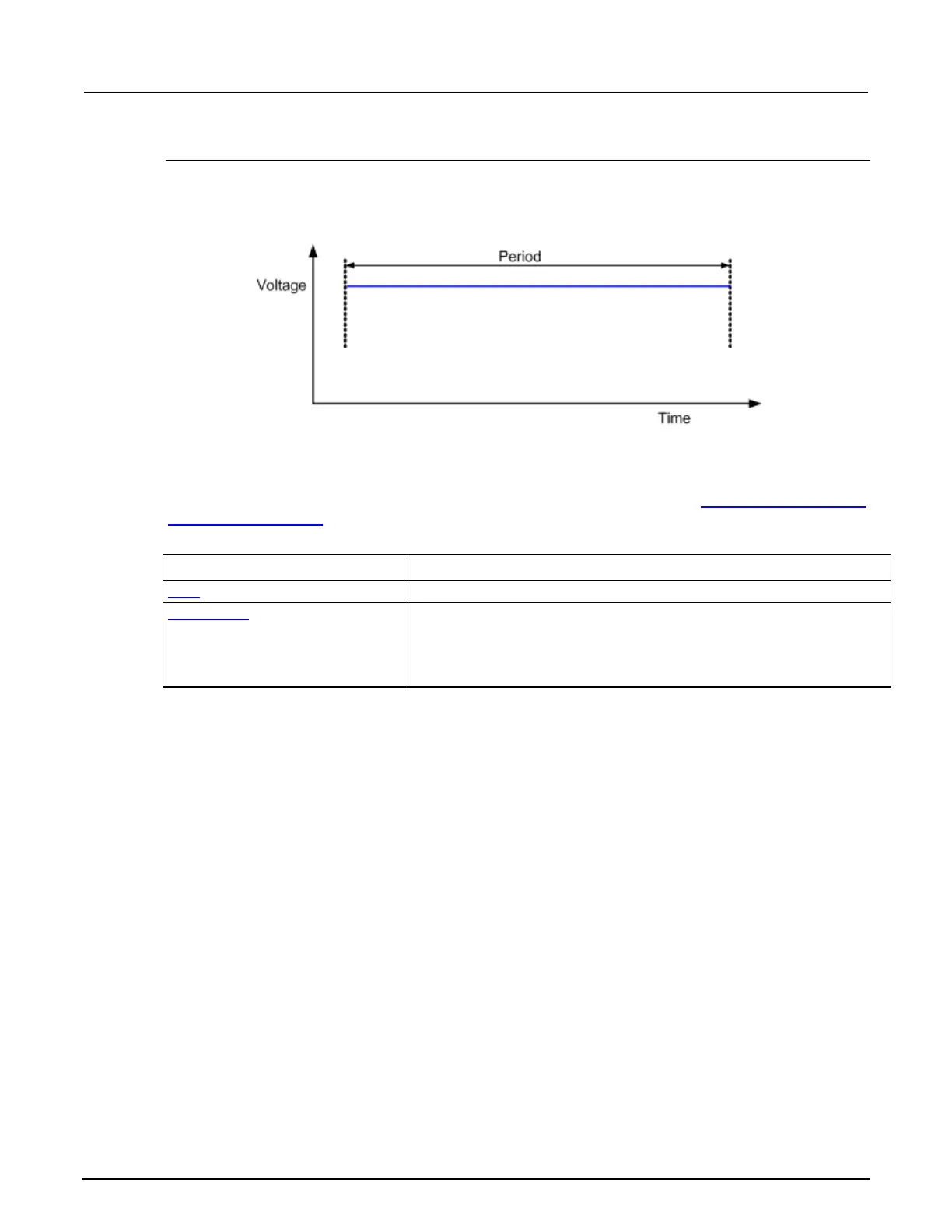

Figure 247: DC Bias waveform
The DC Bias operation mode generates data that is recorded in the Analyze pane.
The parameters that are specific to this mode are briefly described in the following table. Select the
links to access additional information. Additional parameters are described in
Parameters common to
PMU operation modes (on page 6-69). The parameters are listed in the order in which they appear in
the All Parameters pane.
Parameter Description
The voltage offset (from 0 V) that is the reference for the pulse amplitude.
Force Range (on page 6-71)
The range that is used when sourcing. Select one of the listed ranges. The
source remains on the range that is set. If you are sweeping and a sweep
point exceeds the source range capability, the source outputs the maximum
level for that range. This range must be equal to or greater than the largest
