If Clarius makes and averages multiple readings for a measurement, then Clarius records the

timestamp at the last of these readings, as shown in the following figure.

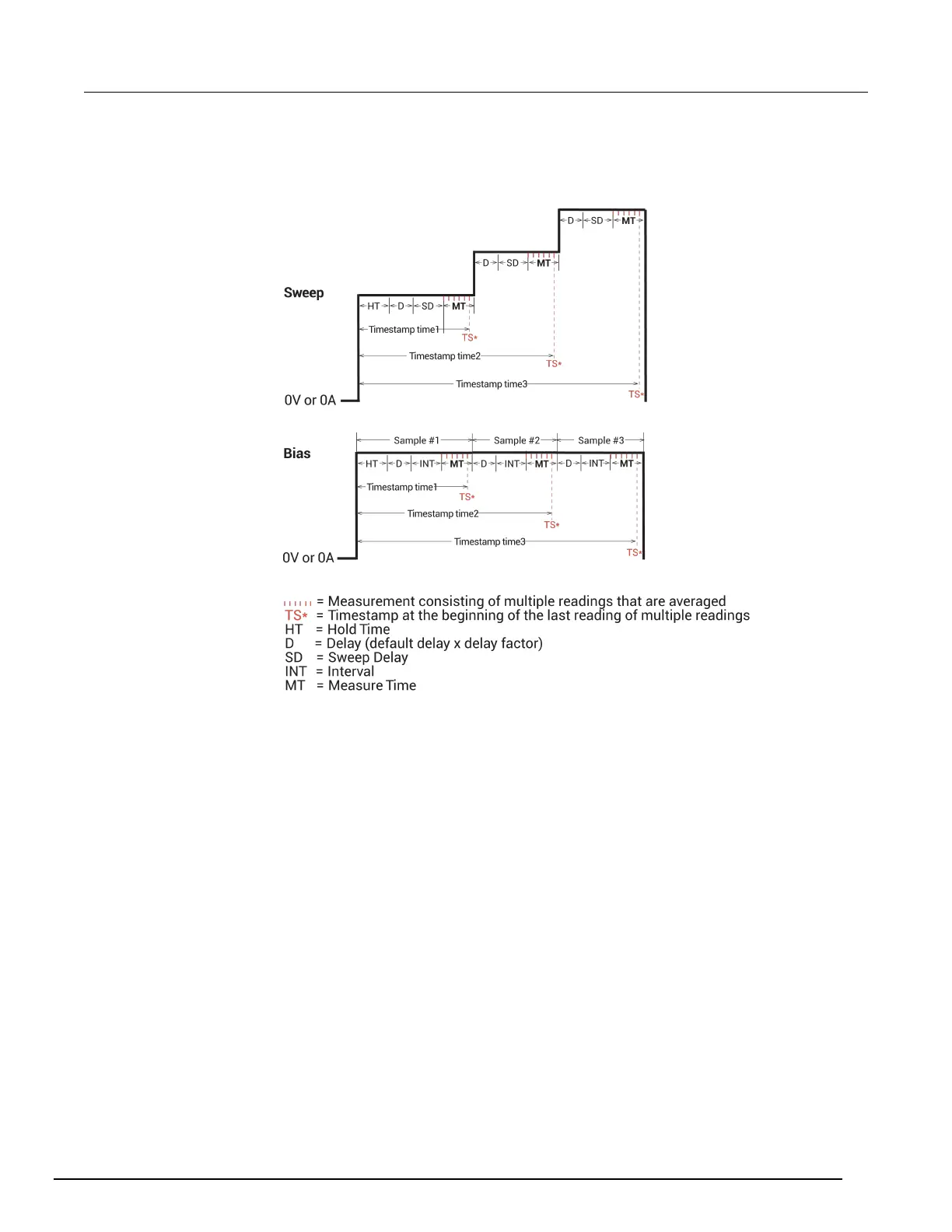

Figure 257: Timestamps when Clarius requires multiple readings for a measurement

You can enable the timestamp for any of the measurement speeds.
