To select output values:
1. In the project tree, select the test.
2. Select Configure.
3. In the right pane, select Test Settings.
4. Select Output Values. The Output Values dialog box is displayed.
5. Select the data series that you want to send to the Analyze sheet.
6. Select OK.

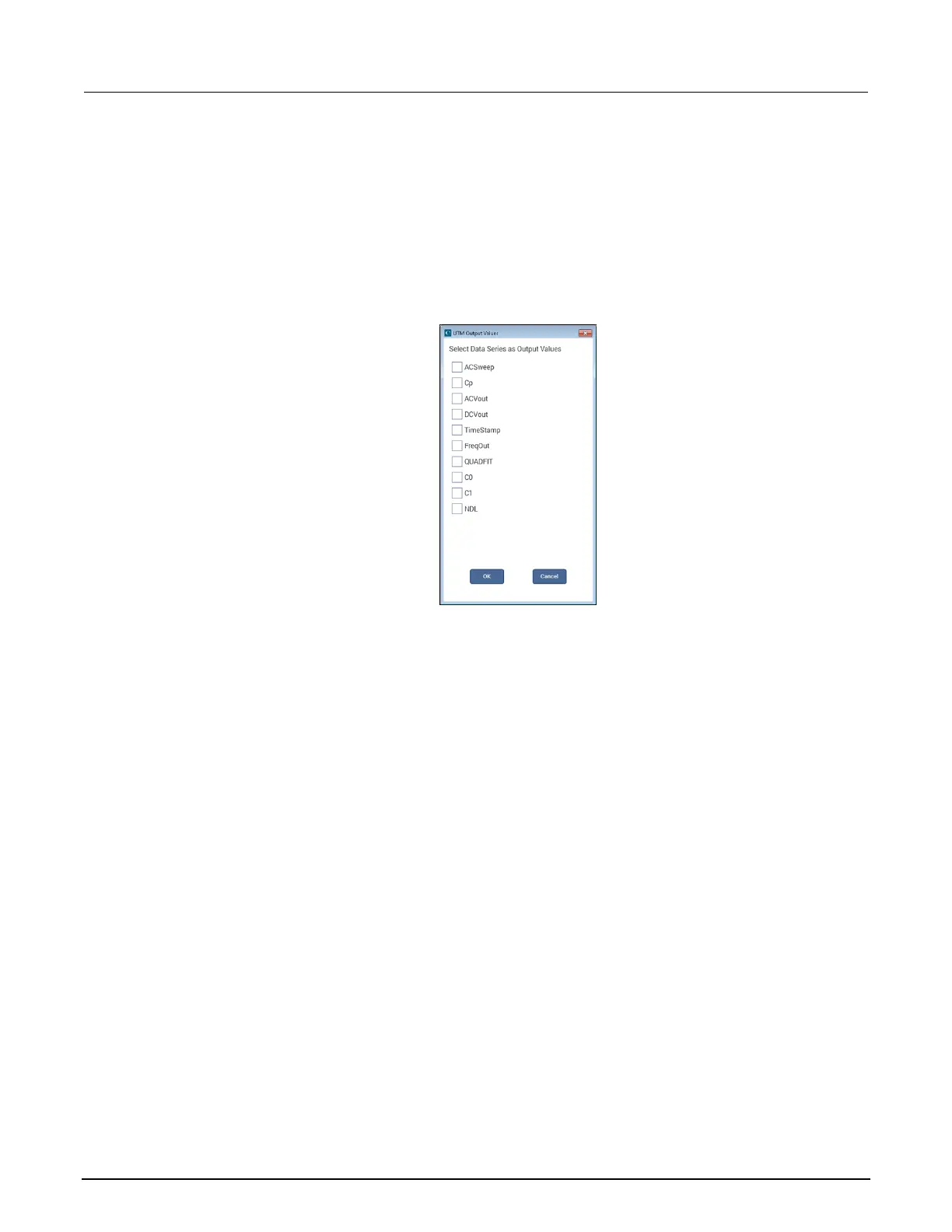

Figure 258: Select Output Values
Compliance exit condition options
These options are available from the Test Settings pane when you select Exit Condition.
When the source goes into compliance, you can choose the action that the system takes.
You can select one of the following exit condition options:
• None: The run continues. This is the default setting.
• Test: The 4200A-SCS exits the test that is presently being run. If there are additional tests,
operation continues to the next test.
• Device: The 4200A-SCS exits the device that is presently being run. If there are additional
devices, operation continues to the next device.
• Subsite: The 4200A-SCS exits the subsite presently being run. If there are additional subsites,
operation continues to the next subsite.
• Site: The 4200A-SCS exits the site. If there are multiple sites, operation continues to the next
site.
• Project: The 4200A-SCS exits the project. All testing stops.
Set the compliance exit condition
To set the exit condition when compliance occurs:
1. Select the test in the project tree.
2. Select Configure.
3. Select Test Settings.
4. Select Exit Condition.
5. Select the option for your test and select OK.
