6: Clarius Model 4200A-SCS Parameter Analyzer

Reference Manual

6-100 4200A-901-01 Rev. C / February 2017

Pulse I-V (Discrete pulses) measurement example

For the example shown in the next figure, the readings are the result of a pulsed IV sweep from 2 V to

5 V (in 1 V steps) with the discrete number of pulses set to three. This test yields the spot mean of the

three pulses for each step of the sweep. The Analyze sheet for the 12 readings are also included in

the next figure.

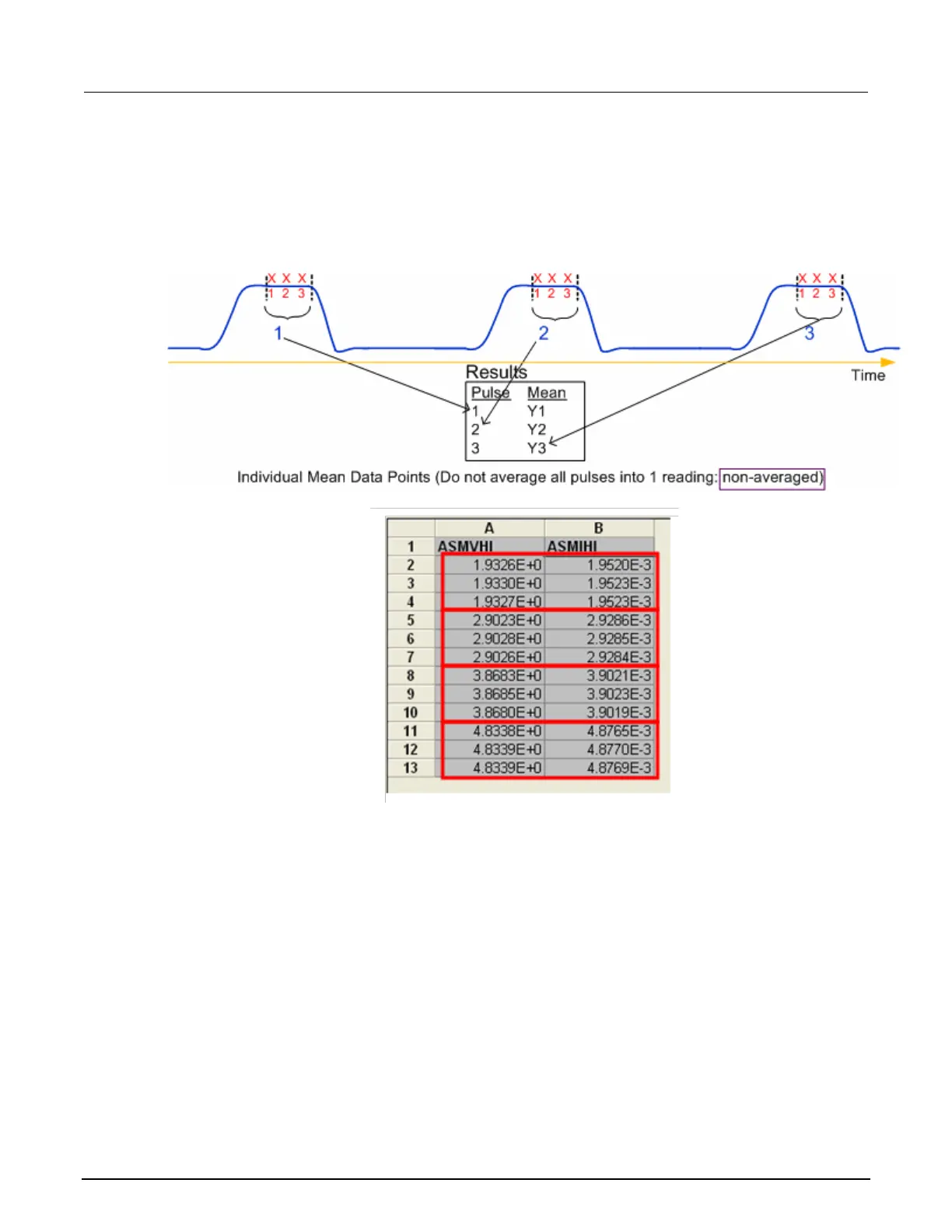

Figure 265: Pulse IV - Discrete pulses
