Rise Time
The rise transition time for the pulse output.
Fall Time
The fall transition time for the pulse output.
Pulse Delay
The pulse delay is the time interval between the start of the rising pulse edge of the trigger output
pulse and the output pulse. You can set the rising or falling polarity of the trigger output pulse edge to
the output pulse. The pulse delay has a variable delay with respect to the trigger output.

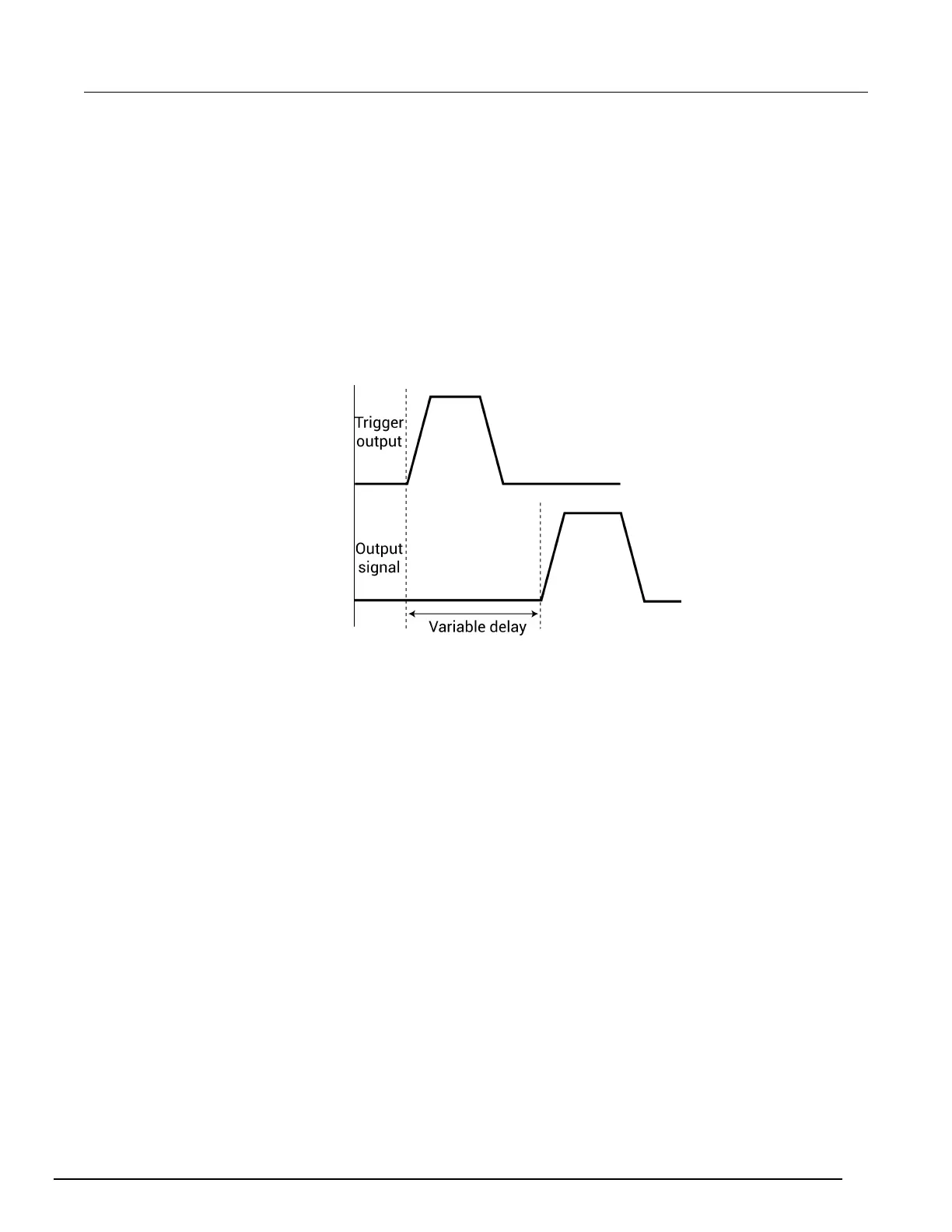

Figure 270: Pulse delay
