Keithley 4200A-SCS Reference Manual

Model 4200A
-SCS Parameter Analyzer Reference Manual Section 2:
Connections and configuration
4200A-901-01 Rev. C / February 2017 2-9
Ground unit and SMU remote sense connections
The next figure shows a typical remote sense connection scheme using two SMUs, two DUTs, and
the ground unit. Make connections as follows:
• Connect the SMU FORCE and SENSE signals to the two DUT HI terminals.
• Connect both DUT LO terminals together, and connect GNDU SENSE and FORCE to the
common DUT LO connection point.

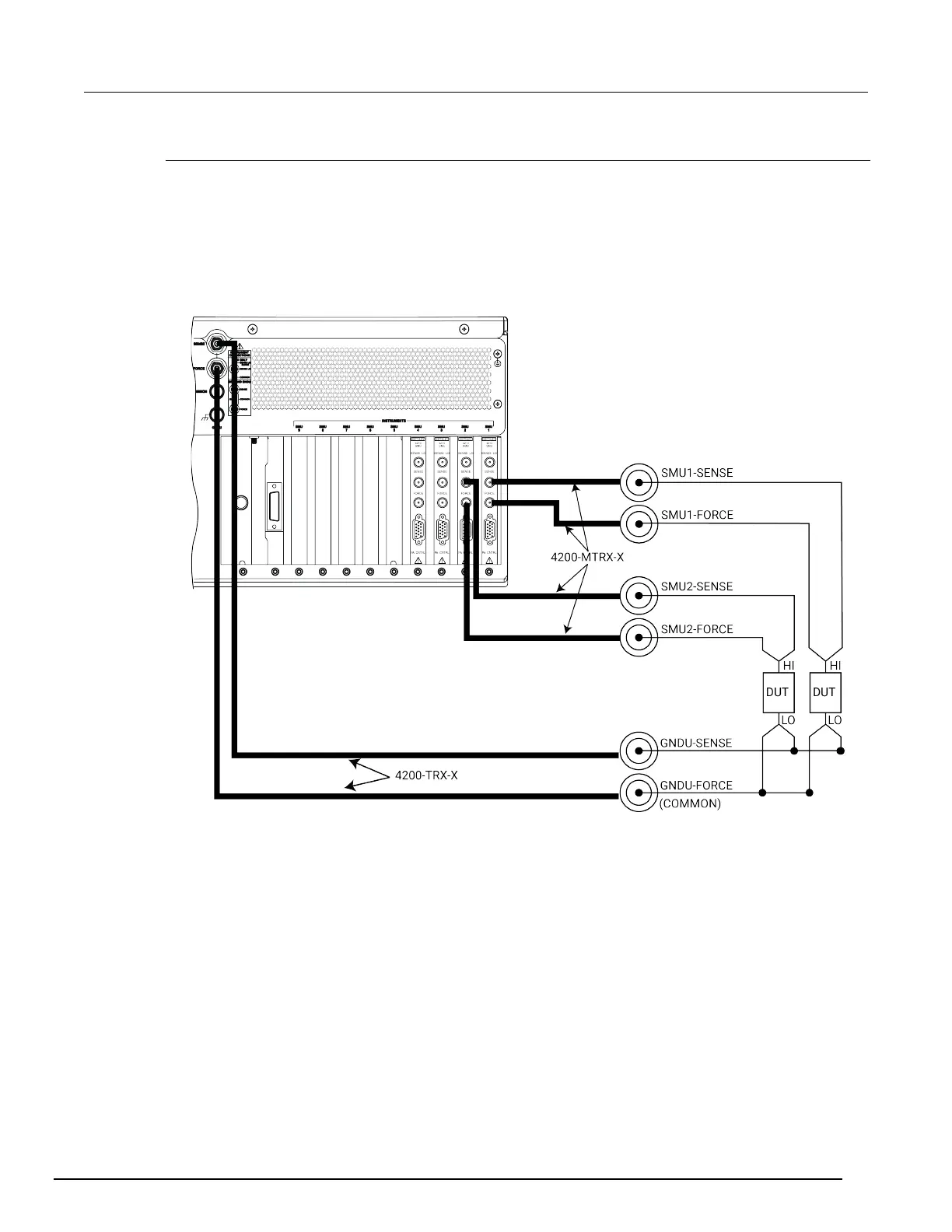

Figure 14: Ground unit and SMU remote sense connections
