The maximum allowed voltage between COMMON and chassis ground is ±32 V DC.

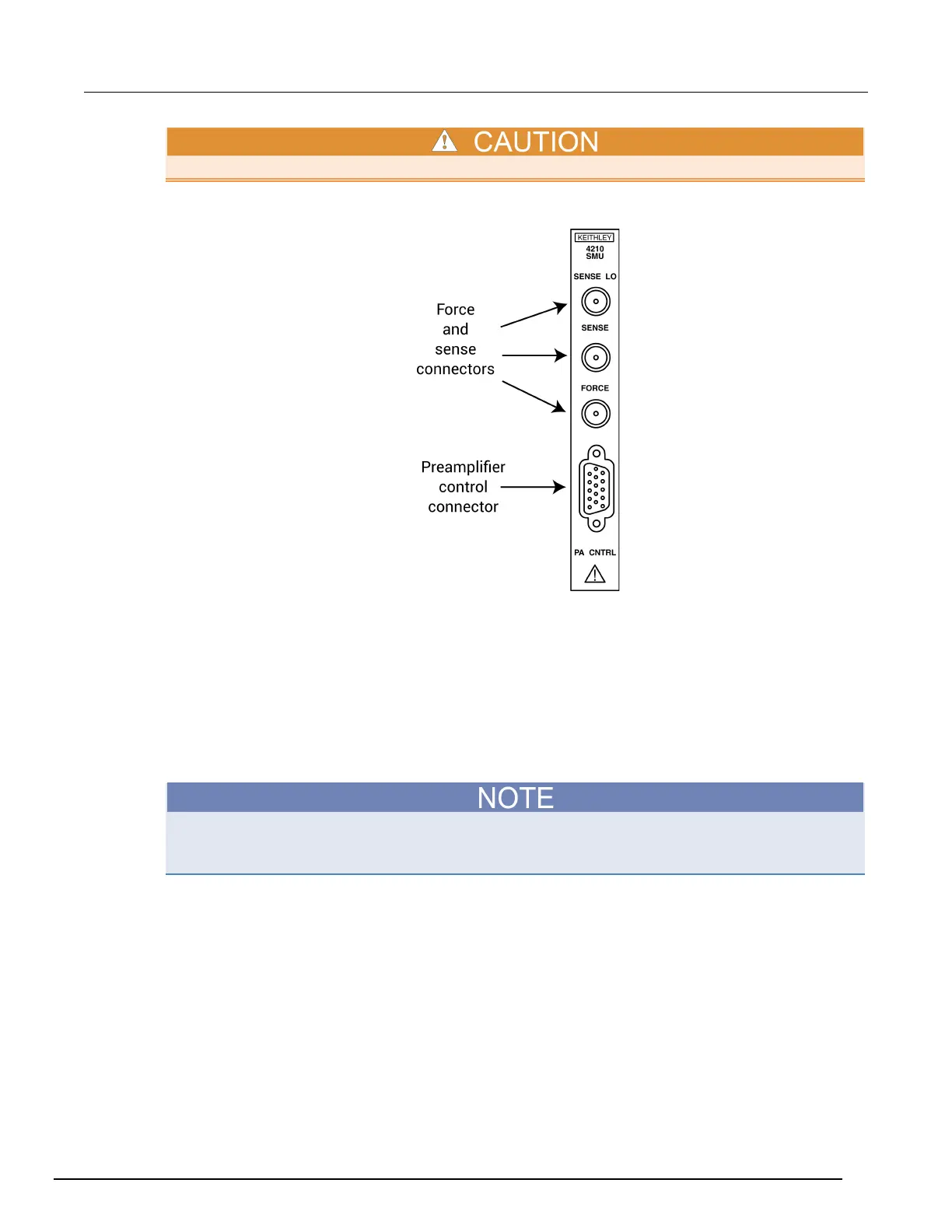

Figure 22: 4200-SMU and 4210-SMU connectors
SENSE LO terminal
The SENSE LO terminal is a miniature triaxial connector used to apply the SMU SENSE LO signal to
the DUT in a full-Kelvin remote sense application.
• The center pin is SENSE LO
• The inner shield is SENSE GUARD
• The outer shield is circuit COMMON
Nominal internal autosense resistance appears between SENSE LO GUARD and COMMON.
The remote sense capability of the ground unit should be used instead of the SENSE LO of a SMU.
If it is necessary to use the SENSE LO terminal of a SMU, the SENSE LO terminals of all SMUs
being used in a single 4200A-SCS should be connected to the DUT.
