-SCS Parameter Analyzer Reference Manual Section 6:
4200A-901-01 Rev. C / February 2017 6-203
Configure cursors
To display cursors:
1. Select Analyze.
2. On the graph, right-click and select Cursors. The dialog box shown below opens.

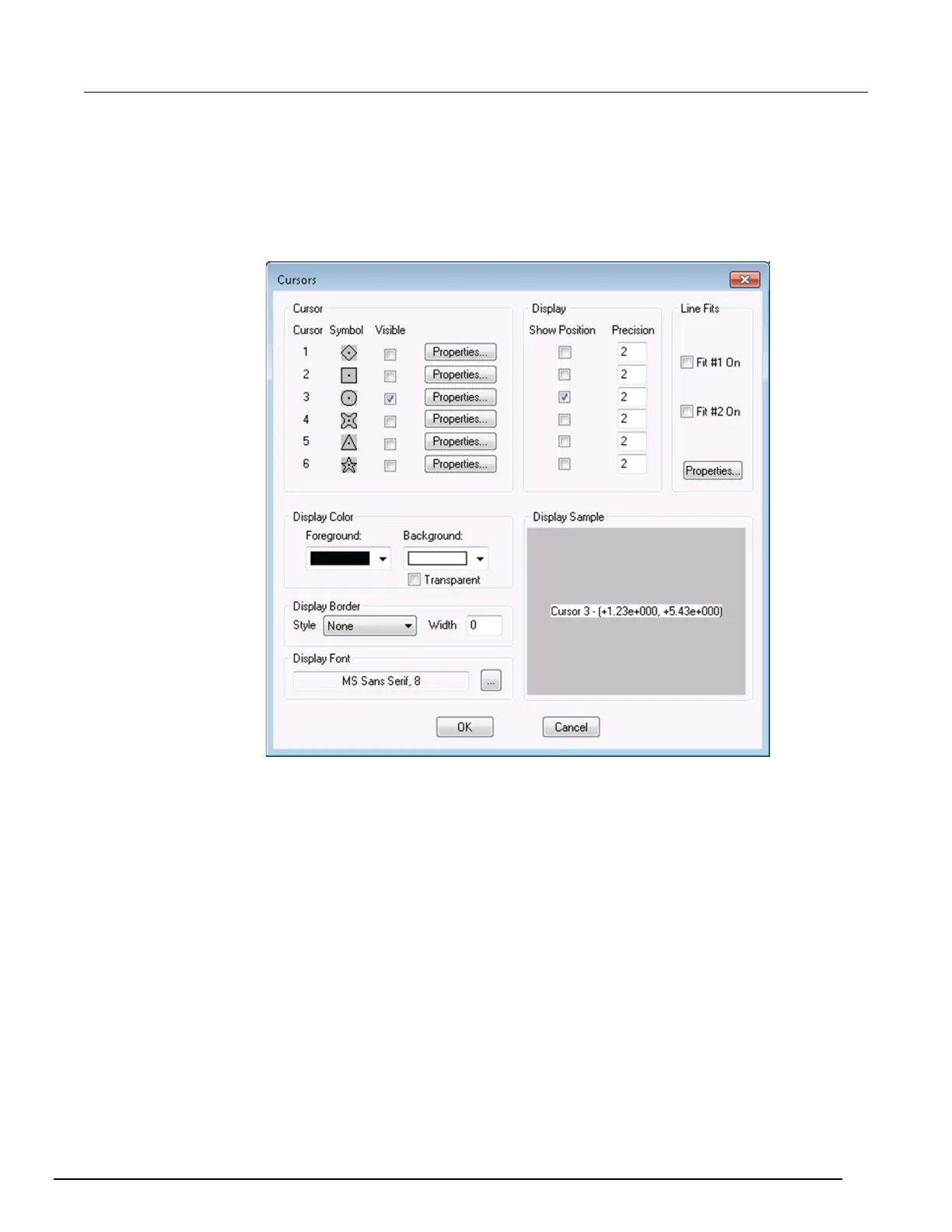

Figure 361: Graph Cursors dialog box
3. In the Cursor list, select Visible for the cursors you want to display. Show Position in the Display
area is automatically selected for each cursor that has Visible selected.
