6: Clarius Model 4200A-SCS Parameter Analyzer
6-208 4200A-901-01 Rev. C / February 2017
4. Select Properties next to the cursor. The Cursor dialog box for the selected cursor opens, as
shown below.

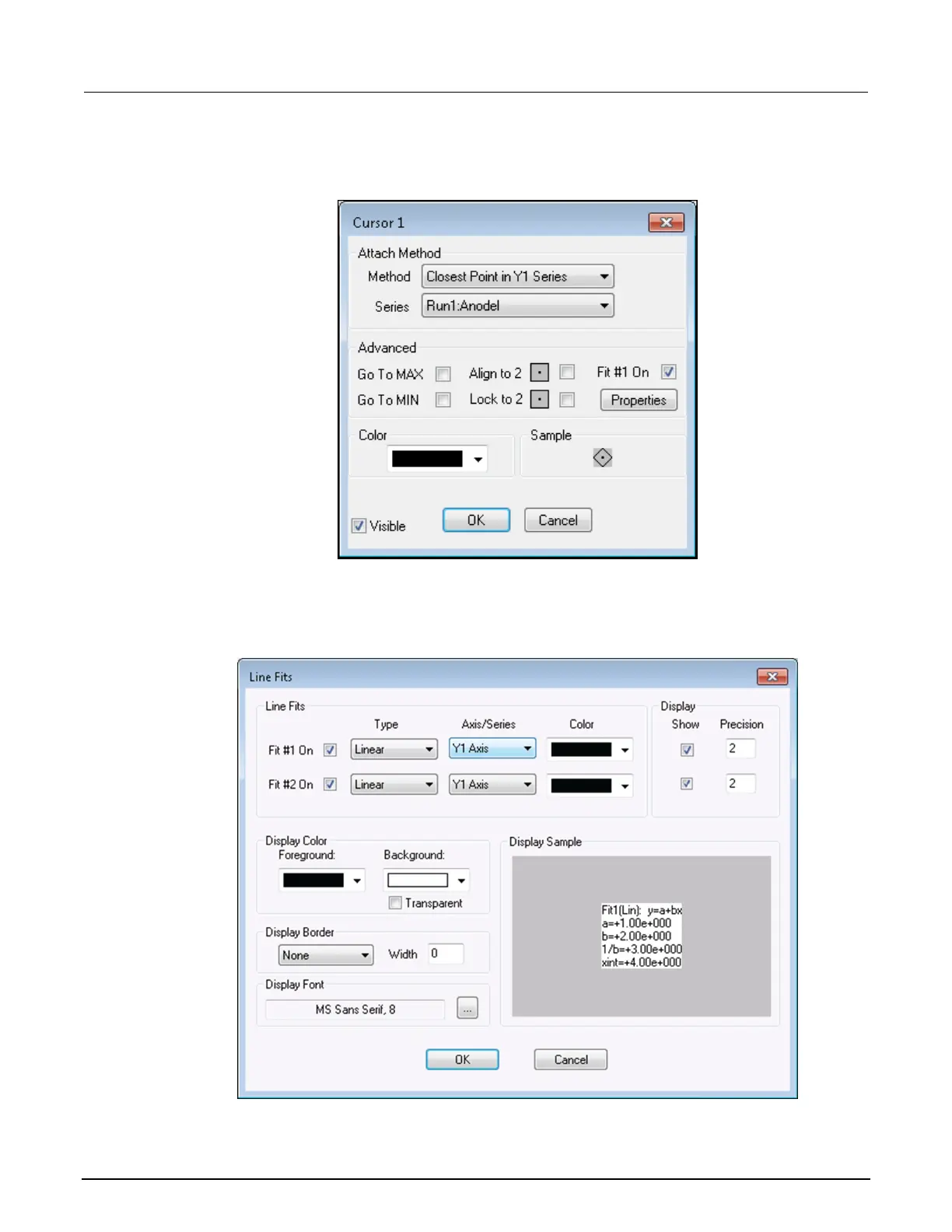

Figure 365: Cursor # dialog box
5. Select Fit # On.
6. Select Properties under Fit # On. The Line Fits dialog box is displayed, as shown in the following
figure. The options are described in the following table.
Figure 366: Line Fits dialog box
