6: Clarius Model 4200A-SCS Parameter Analyzer
6-324 4200A-901-01 Rev. C / February 2017
Details
InputOkCancelDialog displays a dialog box that contains up to four message prompts and four
text input fields with OK and Cancel buttons.

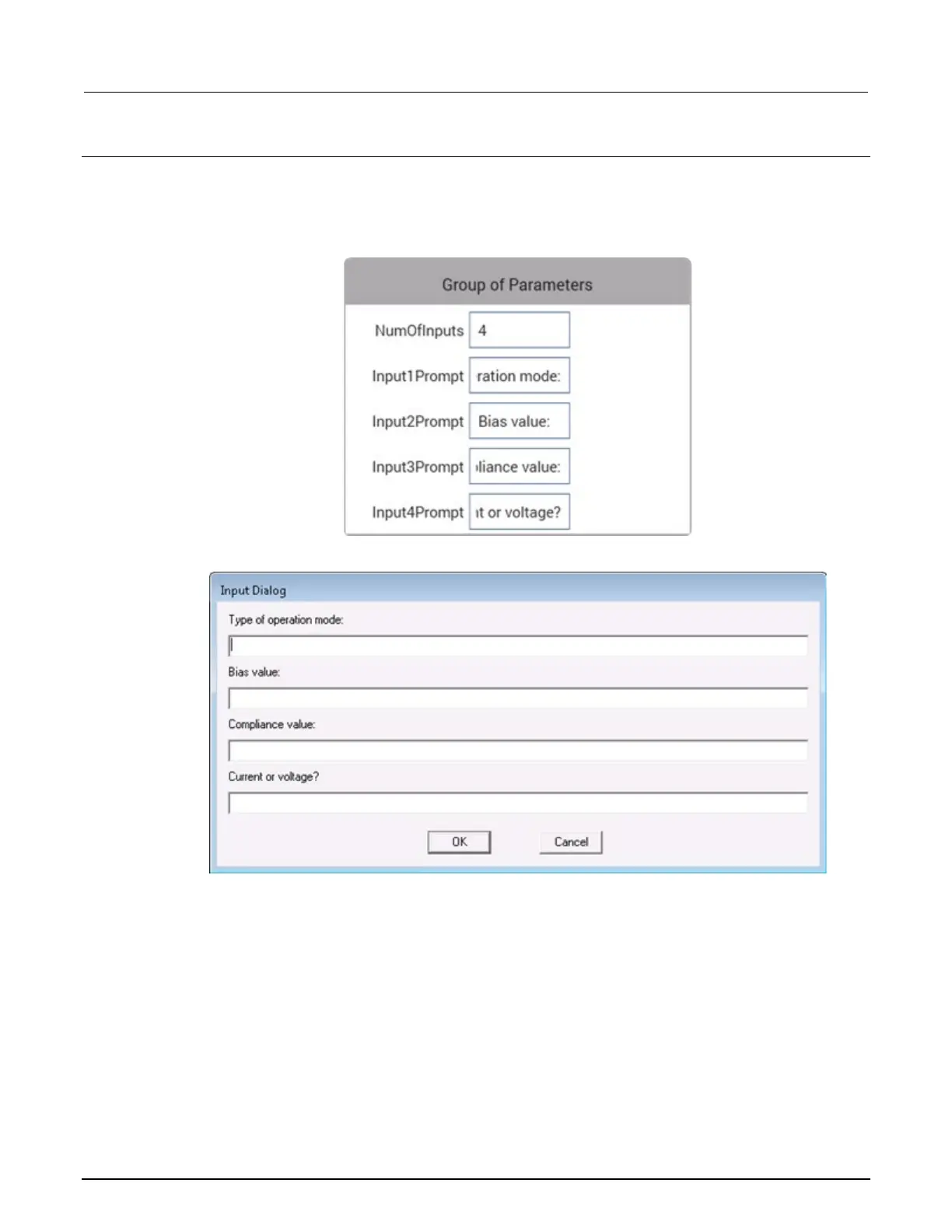

There is a separate user-entered prompt message for each input. An example of the entry in Clarius
and the resulting dialog box are shown in the following graphics.
Returned values are placed in the Analyze sheet and can be:
• 1: The OK button was selected.
• 2: The Cancel button was selected.
• -10050 (WINULIB_ILLEGAL_NUM_MSG): An illegal number of messages was specified.
• -10051 (WINULIB_ILLEGAL_STRING_LEN): The length of one or more messages was too
long.
• -10052 (WINULIB_NO_WINDOW_HANDLE): No window handle for Clarius was found. Clarius is
not running.
