Keithley 4200A-SCS Reference Manual

Model 4200A
-SCS Parameter Analyzer Reference Manual Section 3: Source-
measure hardware
4200A-901-01 Rev. C / February 2017 3-5
4200-SMU source or sink

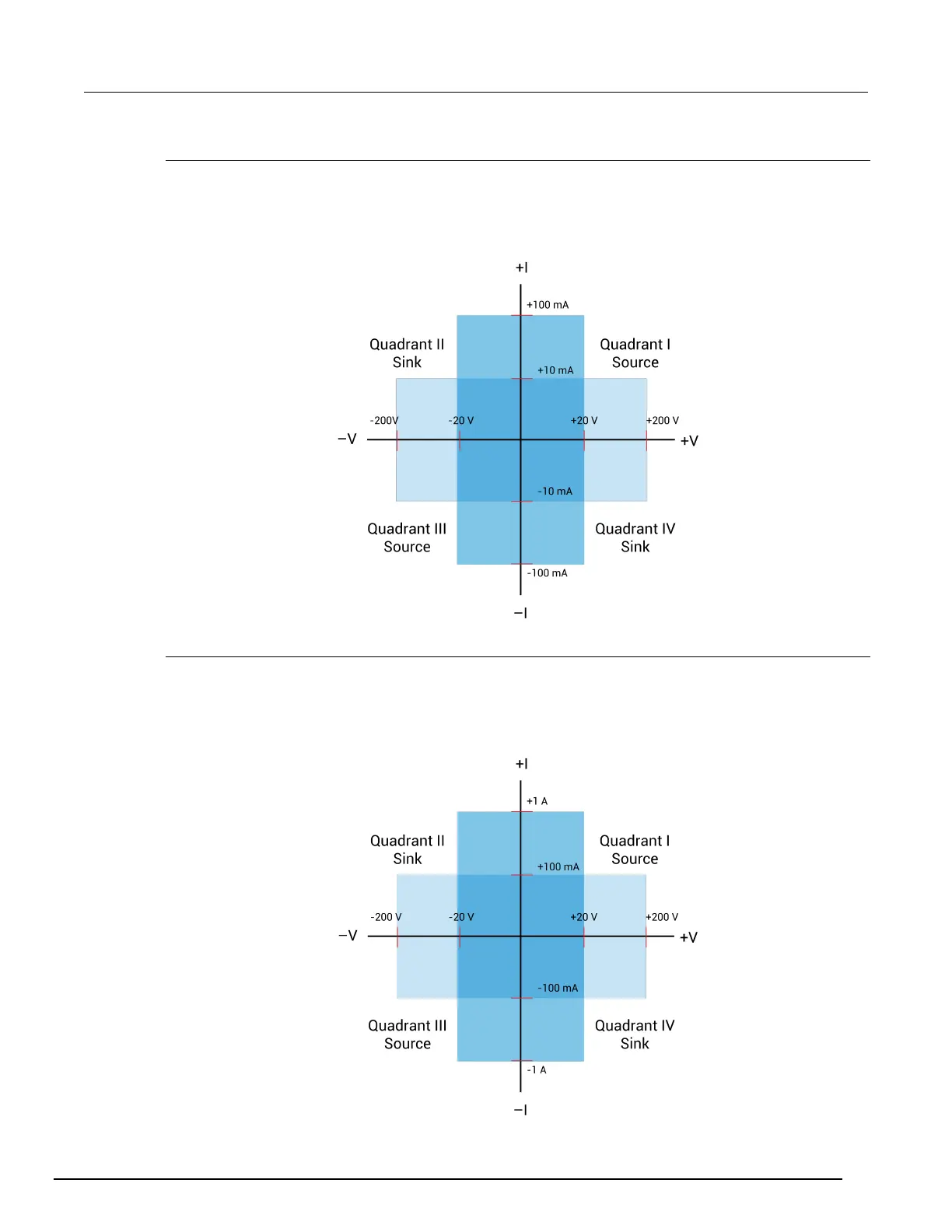

In the general operating boundaries in the next figure, the 100 mA, 20 V and 10 mA, 200 V
magnitudes are nominal values. The actual maximum output magnitudes of the 4200-SMU are
105 mA, 21 V and 10.5 mA, 210 V. Note that the boundaries are not drawn to scale.
Figure 31: 4200-SMU and 4200-PA operating boundaries
4210-SMU source or sink
In the next figure, the 1A, 20 V and 100 mA, 200 V magnitudes are nominal values. The actual
maximum output magnitudes of the 4210-SMU are 1.05 A, 21 V and 105 mA, 210 V. The boundaries
are not drawn to scale.
Figure 32: 4210-SMU and 4200-PA operating boundaries
