Model 4200A

-SCS Parameter Analyzer Reference Manual Section 6:

Clarius

4200A-901-01 Rev. C / February 2017 6-333

The top portion of the project tree for the Demo project is shown in the following graphic.

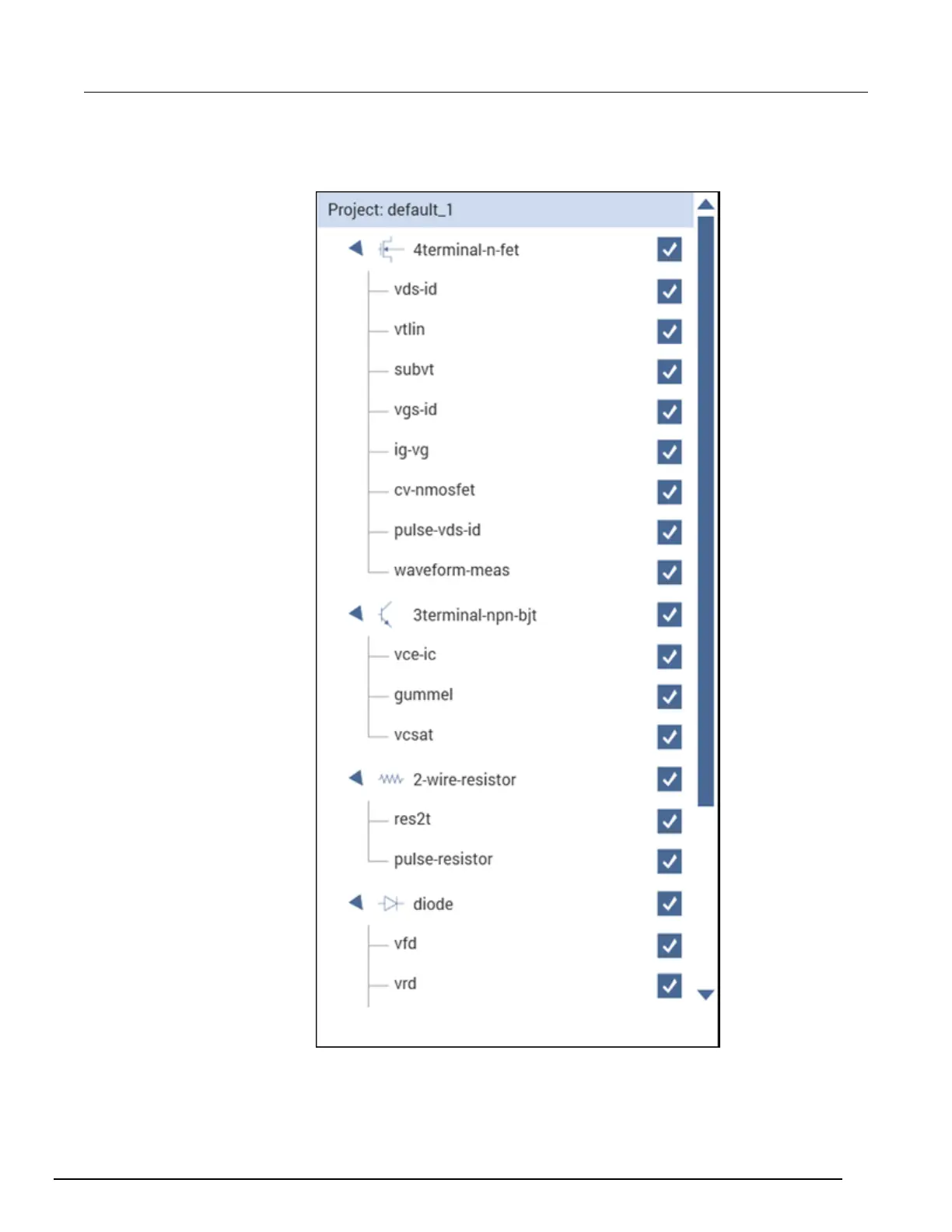

Figure 391: Demo project (default) in the project tree
