6: Clarius Model 4200A-SCS Parameter Analyzer
6-340 4200A-901-01 Rev. C / February 2017

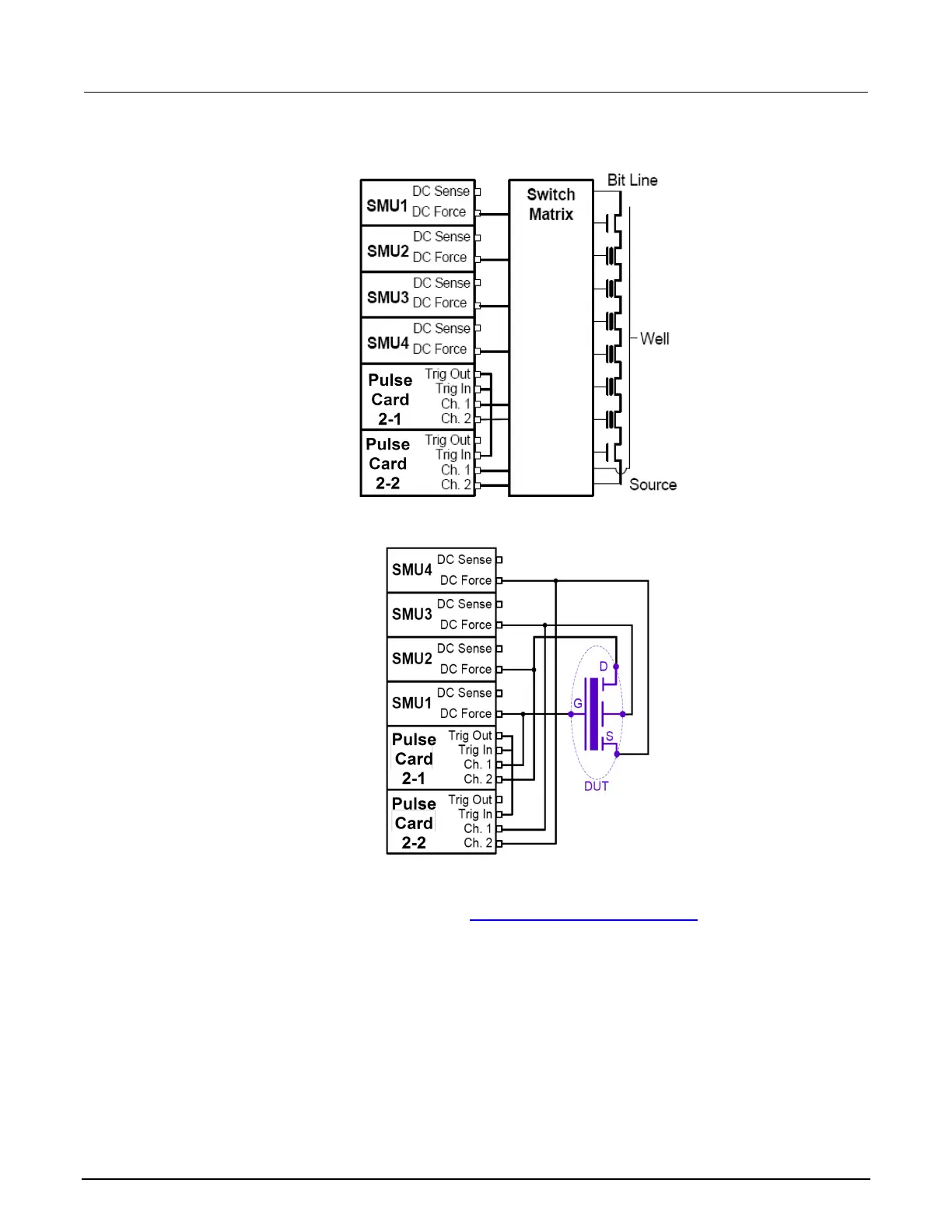

Figure 397: Block diagram of an example flash test setup using a switch matrix
Figure 398: Block diagram of a flash test setup without using a switch matrix (direct connect)
The pulse waveforms are a program pulse, an erase pulse, or a waveform made up of both program
and erase pulses. All of these waveforms are implemented by using the Segment Arb capability. For
more information about waveforms, refer to Pulse Source-Measure Concepts (on page 5-55
). The
following waveforms are examples of the different methods and voltage levels for programming and
erasing.
