Model 4200A

-SCS Parameter Analyzer Reference Manual Section 6:

Clarius

4200A-901-01 Rev. C / February 2017 6-343

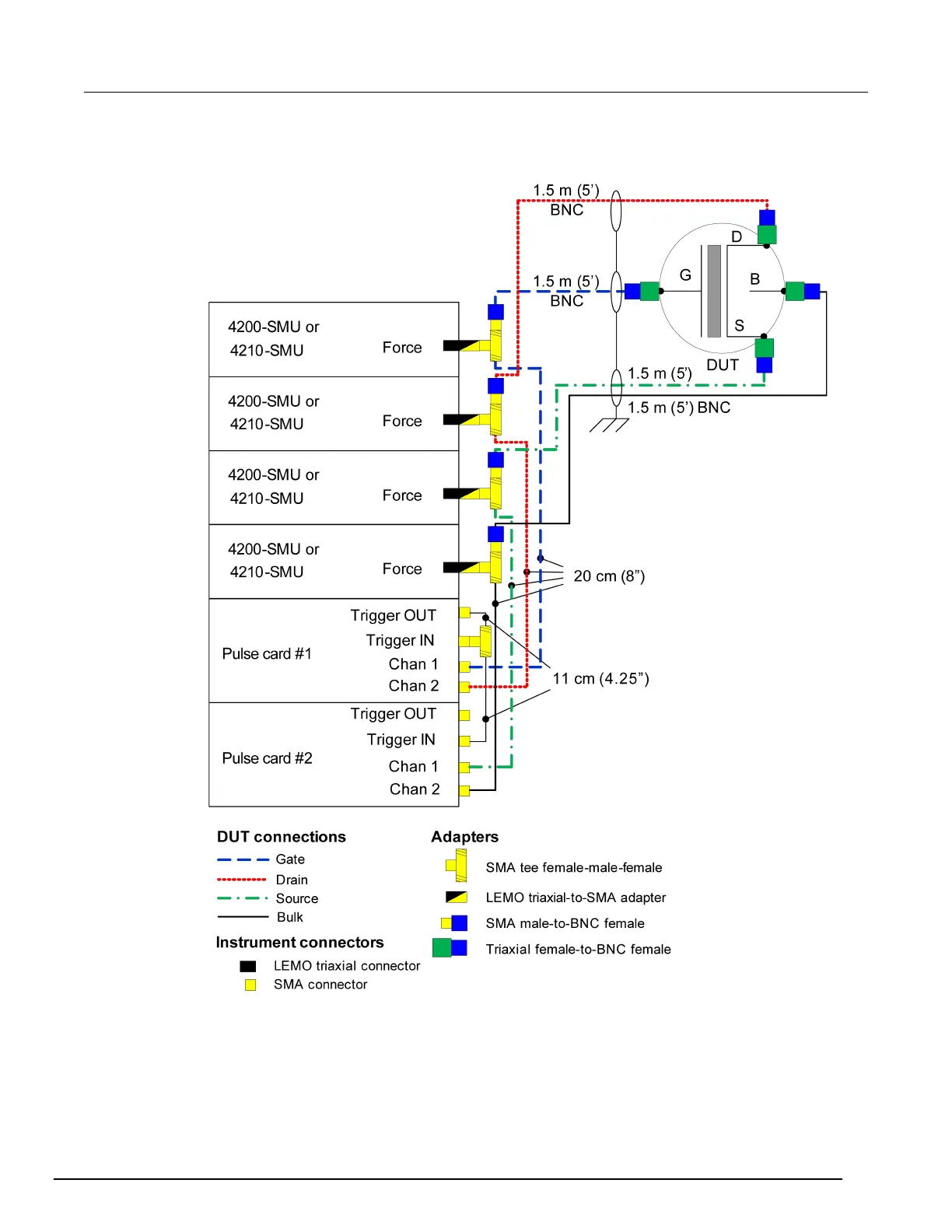

Figure 402: Flash connections - program erase and endurance testing using direct connection

to a single stand-alone 4-terminal device
