Connections for endurance testing - switch matrix

A switch matrix is recommended for testing array test structures for endurance or disturb.

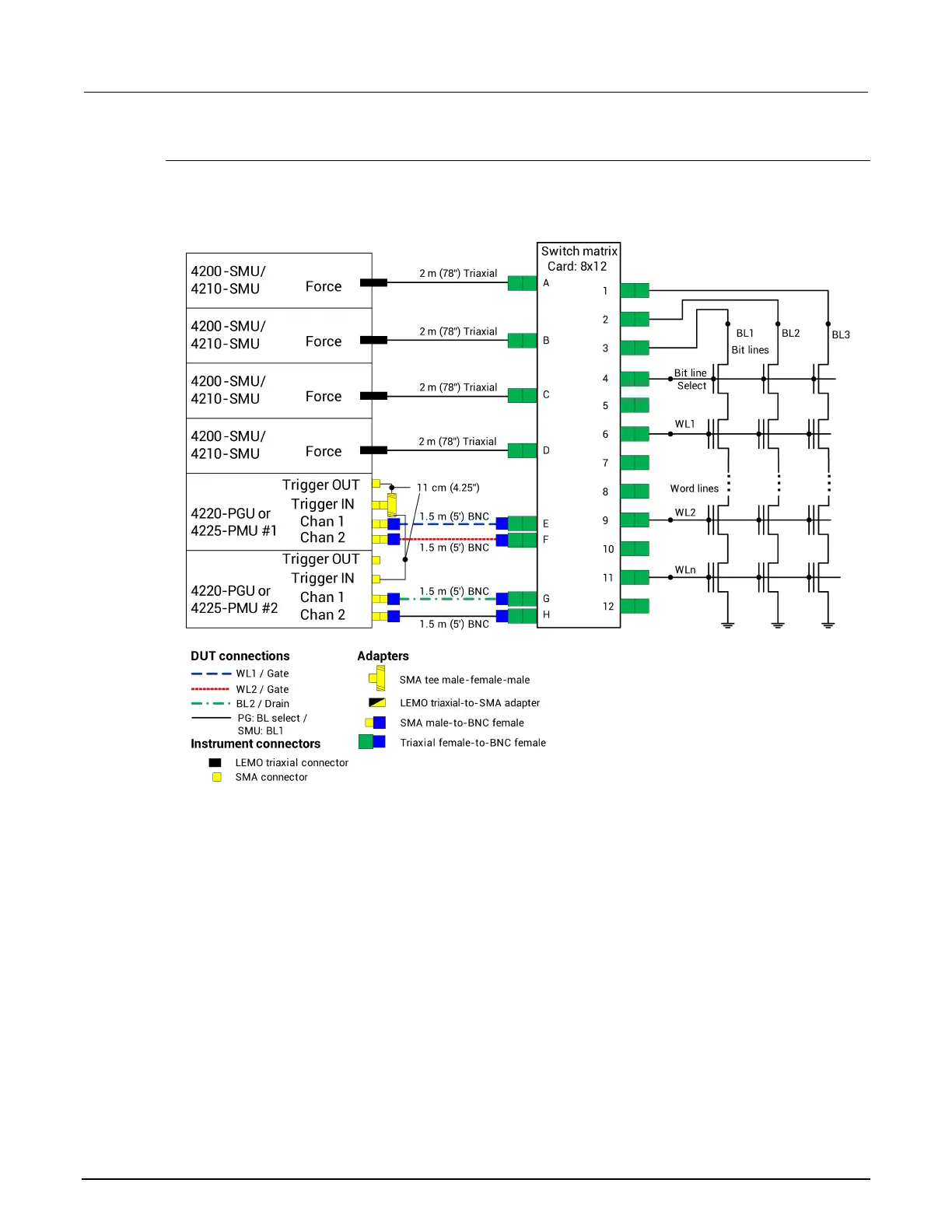

Figure 405: 4200-900_Flash Switch connections - characterization endurance or disturb

testing
