Model 4200A
-SCS Parameter Analyzer Reference Manual Section 7: Keithley Configuration Utility (KC
on)
4200A-901-01 Rev. C / February 2017 7-5

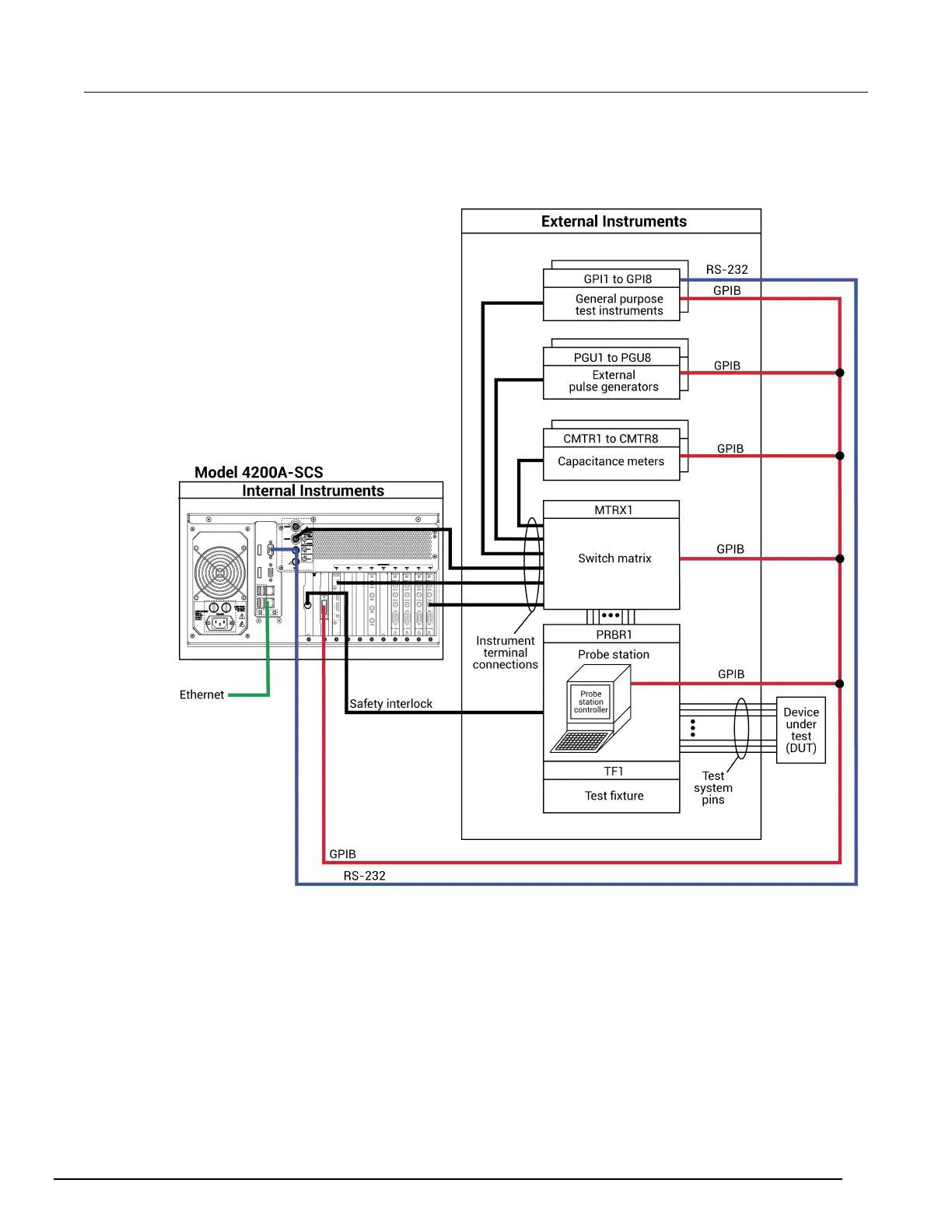

The following figure shows the relationship between internal and external instrumentation and
illustrates each instrument category.
Figure 411: Example system connections
To add an external instrument:
1. Select Add External Instrument.
2. Select the instrument. You can only make one selection at a time.
3. Select OK. The instrument is added to the Configuration Navigator.
