Keithley 4200A-SCS Reference Manual

Model 4200A
-SCS Parameter Analyzer Reference Manual Section 8:
Keithley User Library Tool (KULT)
4200A-901-01 Rev. C / February 2017 8-35

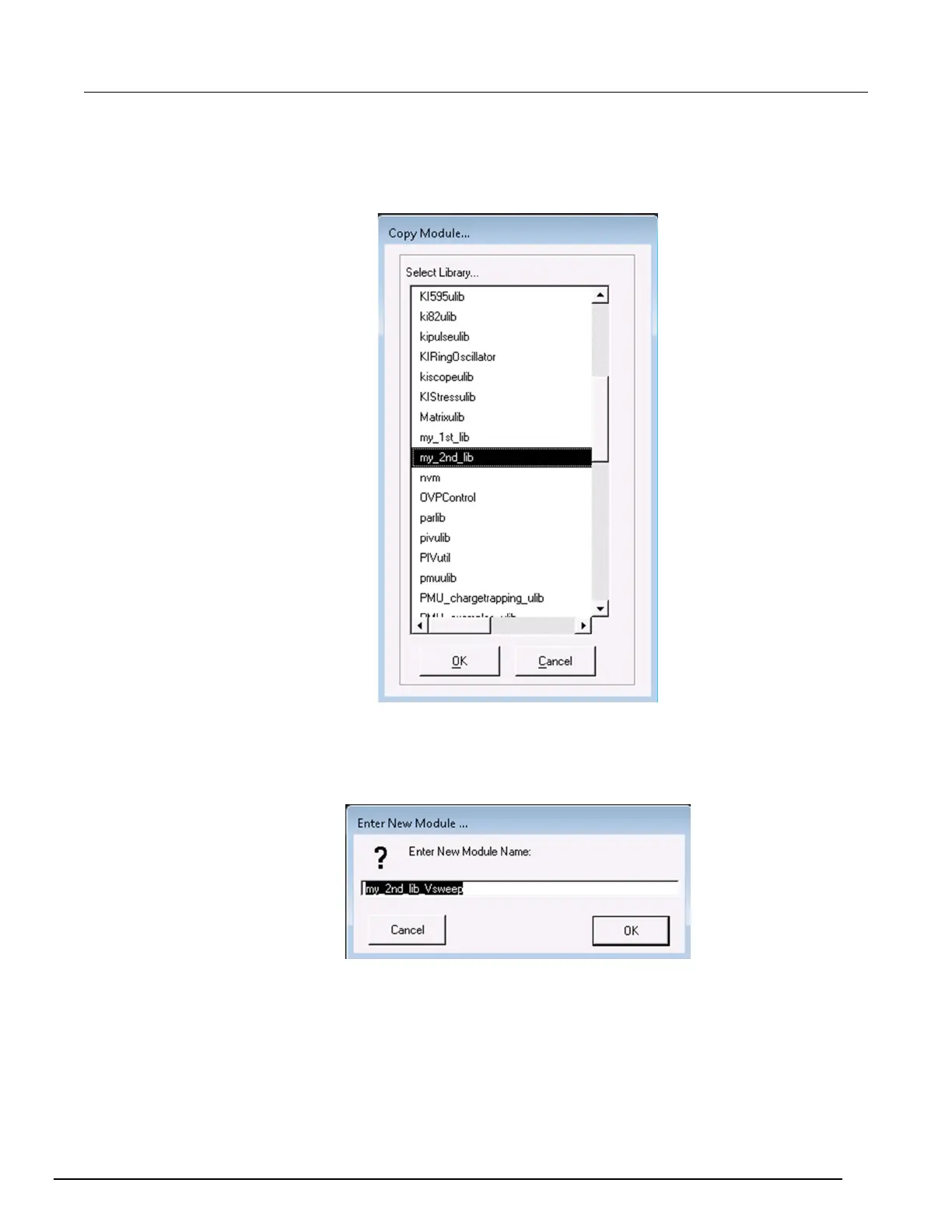

Copy VSweep.c to the new user module VSweepBeep:
1. In the File menu, click Copy Module. The Copy Module list shown in the following figure opens.
Figure 443: Copy Module list box
2. Select my_2nd_lib (in this case, the user library for the copy is the same as the user library for
the source).
3. Click OK. The Enter New Module dialog box opens, as shown here.
Figure 444: Enter New Module dialog box
4. Enter the name VSweepBeep.
5. Click OK.
