8: Keithley User Library Tool (KULT) Model 4200A-SCS Parameter Analyzer

Reference Manual

8-56 4200A-901-01 Rev. C / February 2017

A user module in liba calls a user module in libal. In turn, a user module in liba1 calls a user

module in liba2. Finally, a user module in liba2 calls a user module in liba3.

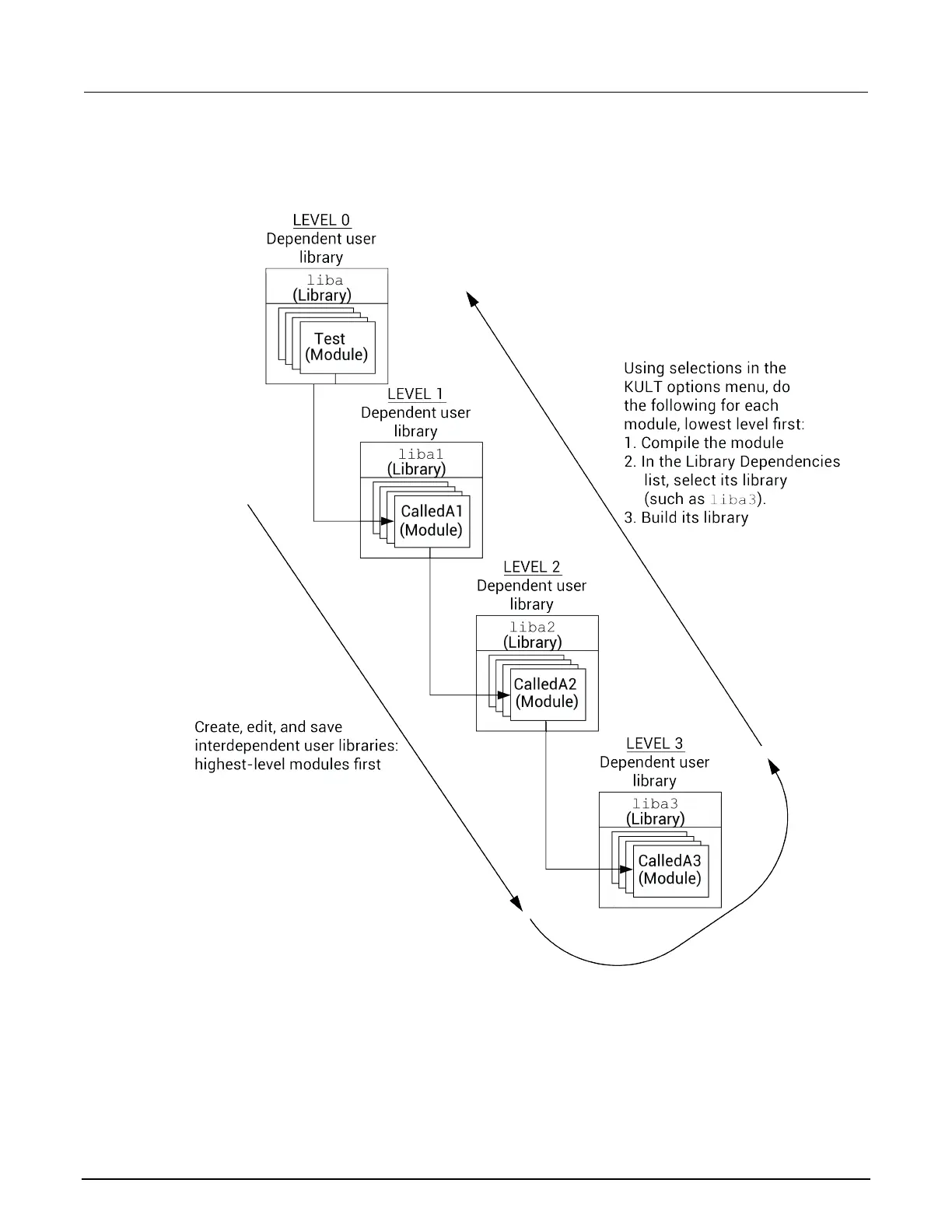

Figure 455: Hierarchical design for user library dependencies
