Keithley 4200A-SCS Reference Manual

Model 4200A
-SCS Parameter Analyzer Reference Manual Section 3: Source-
measure hardware
4200A-901-01 Rev. C / February 2017 3-17

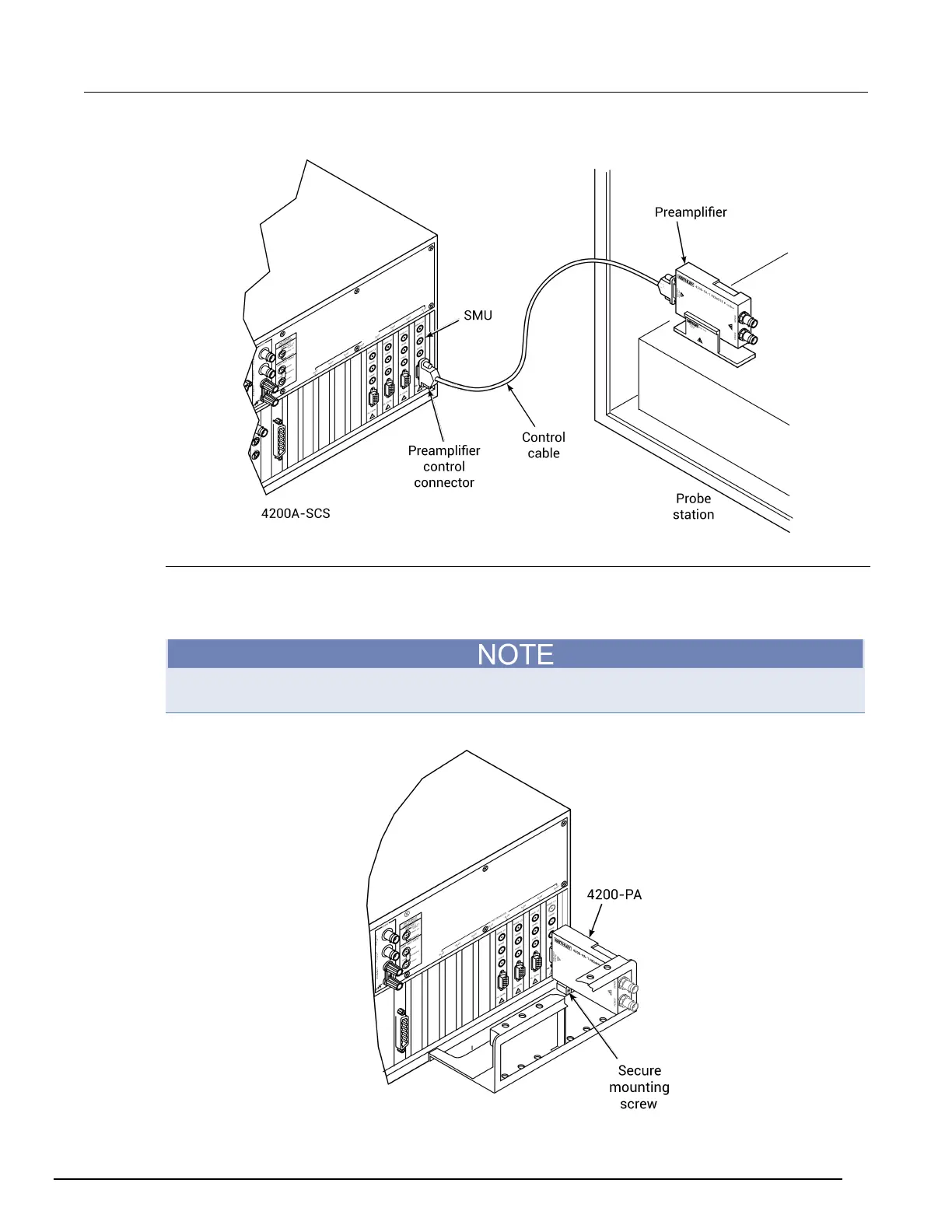

Figure 46: Typical preamplifier remote mounting
Rear panel mounting
A mounting foot secures the preamplifier to the rear panel. A mounting bracket provides extra support
for all the preamplifiers, as shown in the next figure. If you remove the preamplifiers to mount them at
a remote site, ensure that you install the screws in the chassis and retain the bracket for future use.
The preamplifiers are matched to the SMUs that they were originally connected to. Ensure that each
preamplifier is connected to its original SMU.
Figure 47: Preamplifier rear panel mounting
