Keithley 4200A-SCS Reference Manual

Section
10: KPulse (for Keithley Pulse Cards) Model 4200A-SCS Parameter Analyzer
Reference Manual
10-14 4200A-901-01 Rev. C / February 2017
Sine waveform

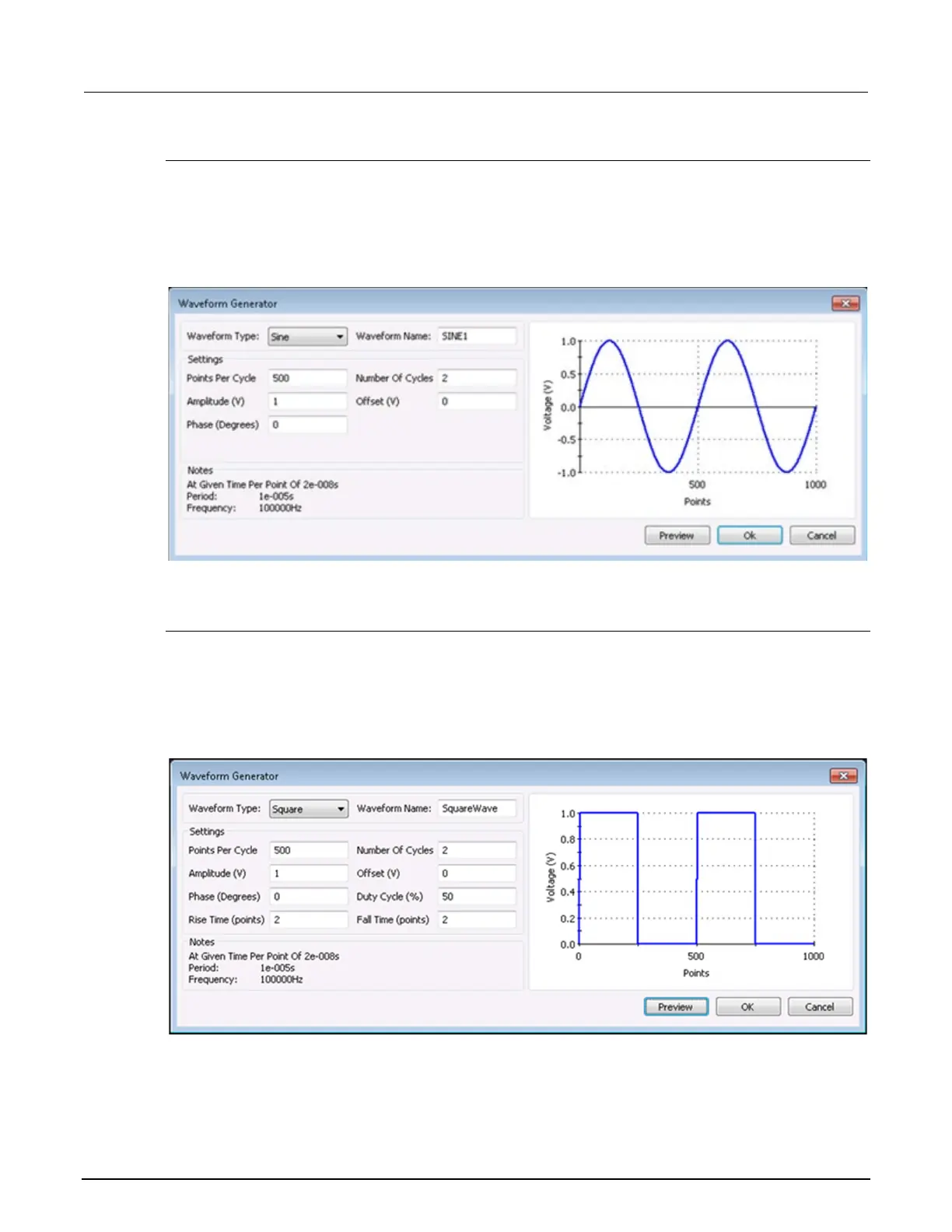

An example of a sine waveform is shown in the next figure. The waveform for this example is named
SINE1, but can be any name that is not already used in the Scratch Pad.
After changing one or more settings, select Preview to display the waveform. Select OK to place the
waveform in the Scratch Pad.
Figure 478: Sine waveform
Square waveform
An example of a square waveform is shown in the next figure. The waveform for this example is
named WAVE3, but can be any name that is not already used in the Scratch Pad.
After changing one or more settings, select Preview to display the waveform. Select OK to place the
waveform in the Scratch Pad.
Figure 479: Square waveform
