Section

12: Maintenance Model 4200A-SCS Parameter Analyzer

Reference Manual

12-6 4200A-901-01 Rev. C / February 2017

5. Select SMU Auto Calibration. A warning dialog box is displayed.

6. Select OK. The SMU Auto Calibration dialog box opens, as shown in the following figure.

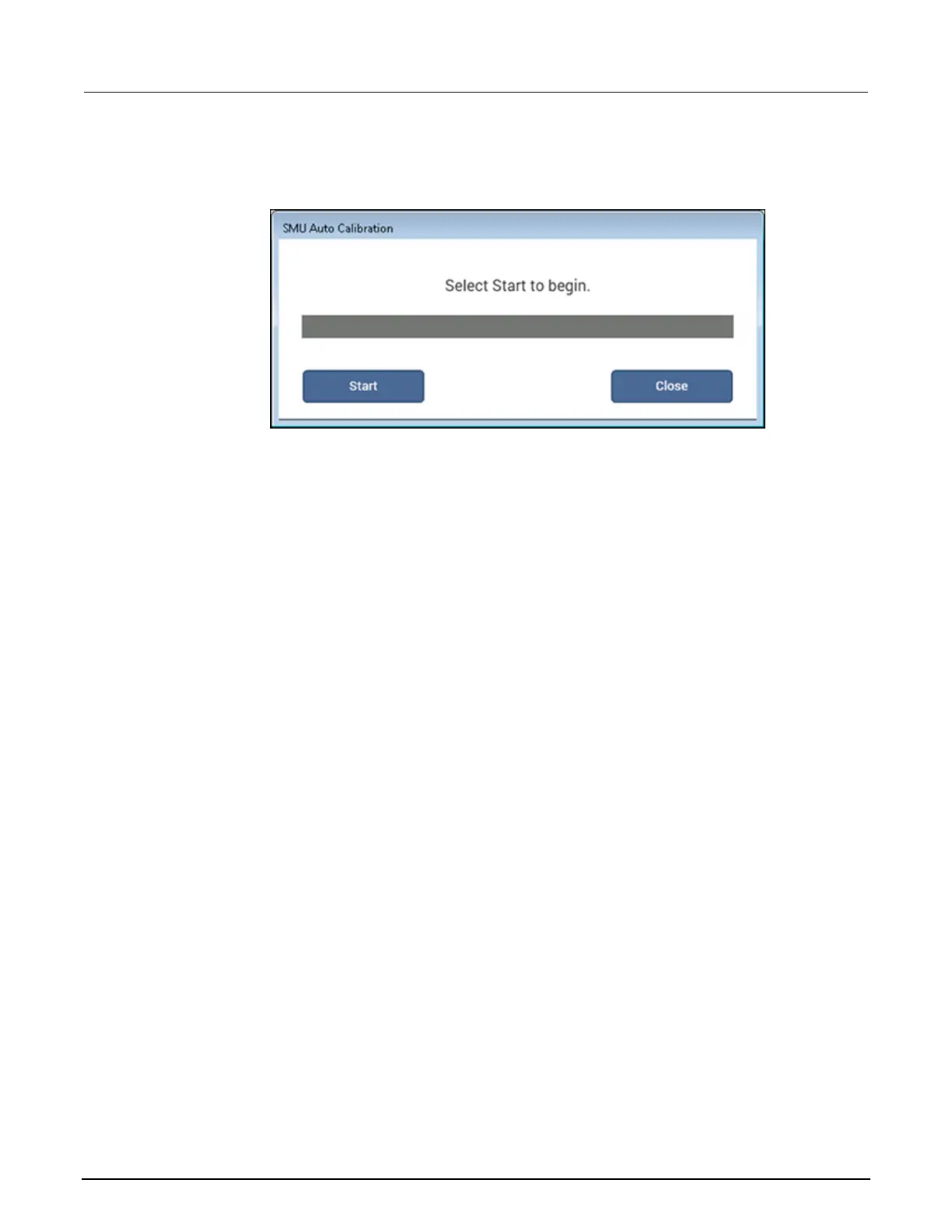

Figure 491: SMU Auto Calibration dialog box

7. Select Start. A progress bar is displayed.

When auto calibration is complete, the message "Auto calibration successfully completed" is

displayed.

8. Select Close. Auto calibration is complete.
