13: LPT library function reference Model 4200A-SCS Parameter Analyzer
13-10 4200A-901-01 Rev. C / February 2017
In this example, the sweepX command configures SMU2 to source a voltage that sweeps from 0 V through
+14 V in 14 steps. The results of the first sweepv command are stored in an array called res1. Because
of the clrscn command, the data and pointers associated with the first sweepv command are cleared.
Then 5 V is forced to the gate, and the measurement process is repeated. Results from these second
measurements are stored in an array called res2.
This example gets the measurement data needed to create a graph showing the gate voltage-to-drain
current characteristics of a field-effect transistor (FET). The program samples the current generated by
SMU2 14 times. This is done in two phases: First with 4 V applied to the gate, and then with 5 V applied.
The gate voltages are generated by SMU1.

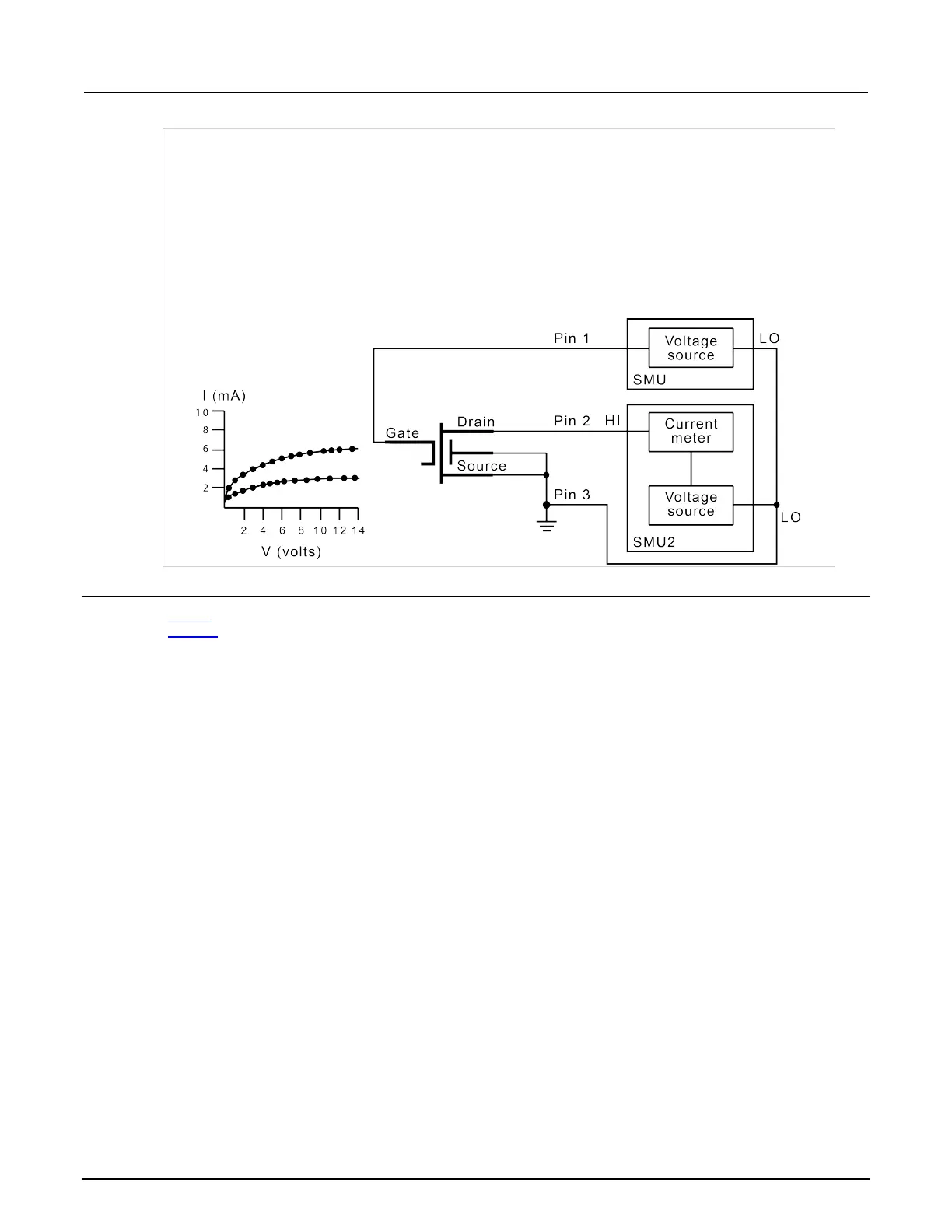

Figure 500: 4200A-SCS gate voltage-to-drain current characteristics
Also see
execut (on page 13-16)
sweepX (on page 13-88)
