13: LPT library function reference Model 4200A-SCS Parameter Analyzer
13-90 4200A-901-01 Rev. C / February 2017

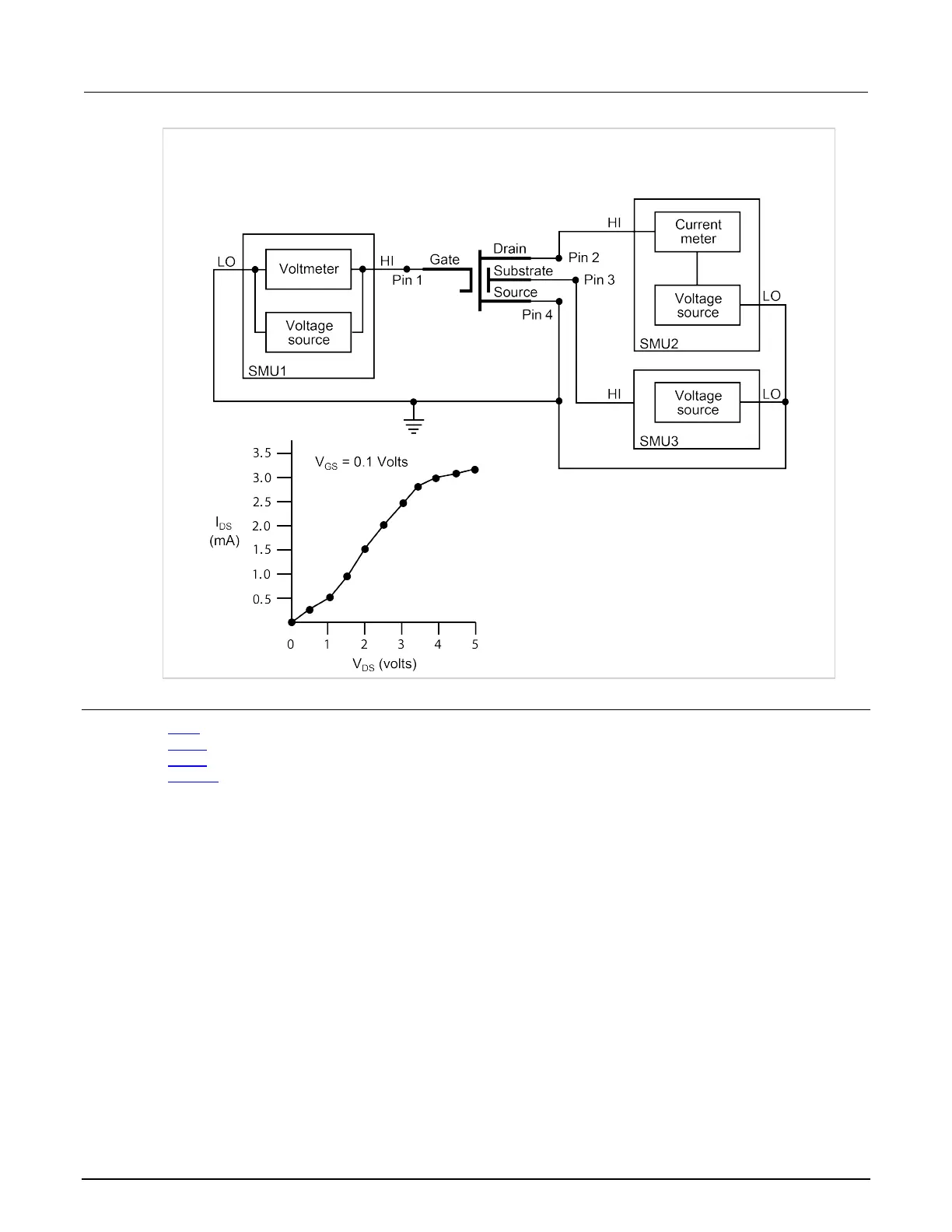

This example gathers data to create a graph showing the common drain-source characteristics of a
field-effect transistor (FET). A fixed gate-to-source voltage is generated by SMU1. A voltage ramp from 0 V
to 5 V is generated by SMU2. Drain current applied by SMU2 is measured 11 times by the smeasi
command. Data is stored in the array resi.
Also see
rtfary (on page 13-36)
savgX (on page 13-36)
sintgX (on page 13-44)
smeasX (on page 13-45)
