Keithley 4200A-SCS Reference Manual

Model 4200A
-SCS Parameter Analyzer Reference Manual Section 13:
LPT library function reference
4200A-901-01 Rev. C / February 2017 13-127

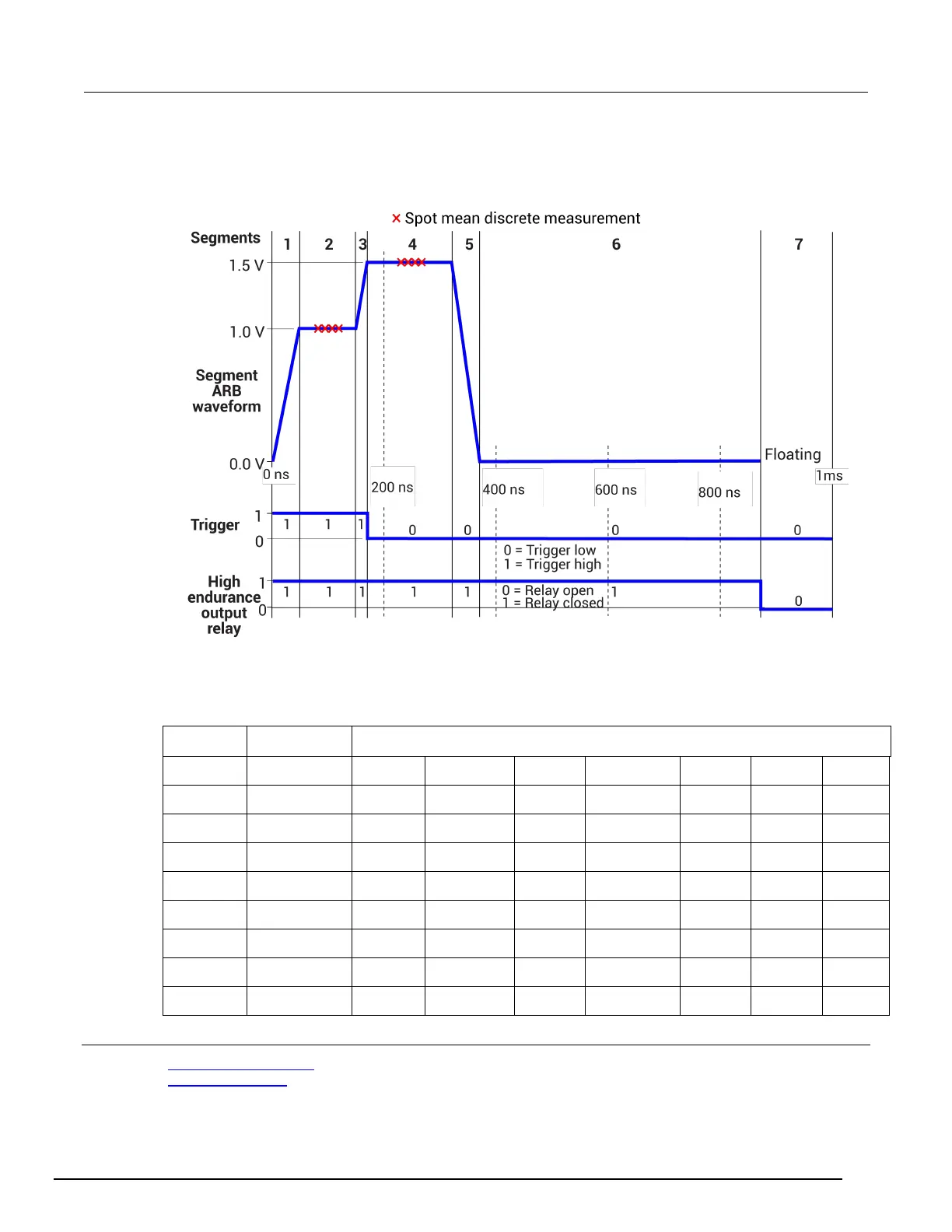

This figure shows an example of a Segment Arb sequence defined by the seg_arb_sequence
command. Spot mean discrete measurements are performed on segments two and four.
Figure 508: Segment Arb sequence example
This table lists the seg_arb_sequence parameter arrays for the Segment Arb sequence shown in
the example.
Parameter arrays for the seg_arb_sequence example
Parameter Array Name Value
SegNum Seg_Num
1
2
3
4
5
6
7
StartV Start_Volt
0 V 1 V 1 V 1.5 V 1.5 V 0 V 0 V
StopV Stop_Volt
1 V
1 V
1.5 V
1.5 V
0 V
0 V
0 V
Time Time_Interval
50e-9 s 100e-9 s 20e-9 s 150e-9 s 50e-9 s 500e-9 s 130e-9 s
Trig Trigger_Level
1 (high)
1 (high)
1 (high)
0 (low)
0 (low)
0 (low)
0 (low)
SSR Output_Relay
1 (closed)
1 (closed)
1 (closed)
1 (closed)
1 (closed)
1 (closed)
0 (open)
MeasType Meas_Type
0 (none)
1 (spot mean)
0 (none)
1 (spot mean)
0 (none)
0 (none)
0 (none)
MeasStart Meas_Start
0 s 25e-9 s 0 s 50e-9 s 0 s 0 s 0 s
MeasStop Meas_Stop
0 s
75e-9 s
0 s
100e-9 s
0 s
0 s
0 s
Also see
Segment Arb waveform (on page 5-56)
seg_arb_waveform (on page 13-128)
