MIPS R4000 Microprocessor User's Manual 221

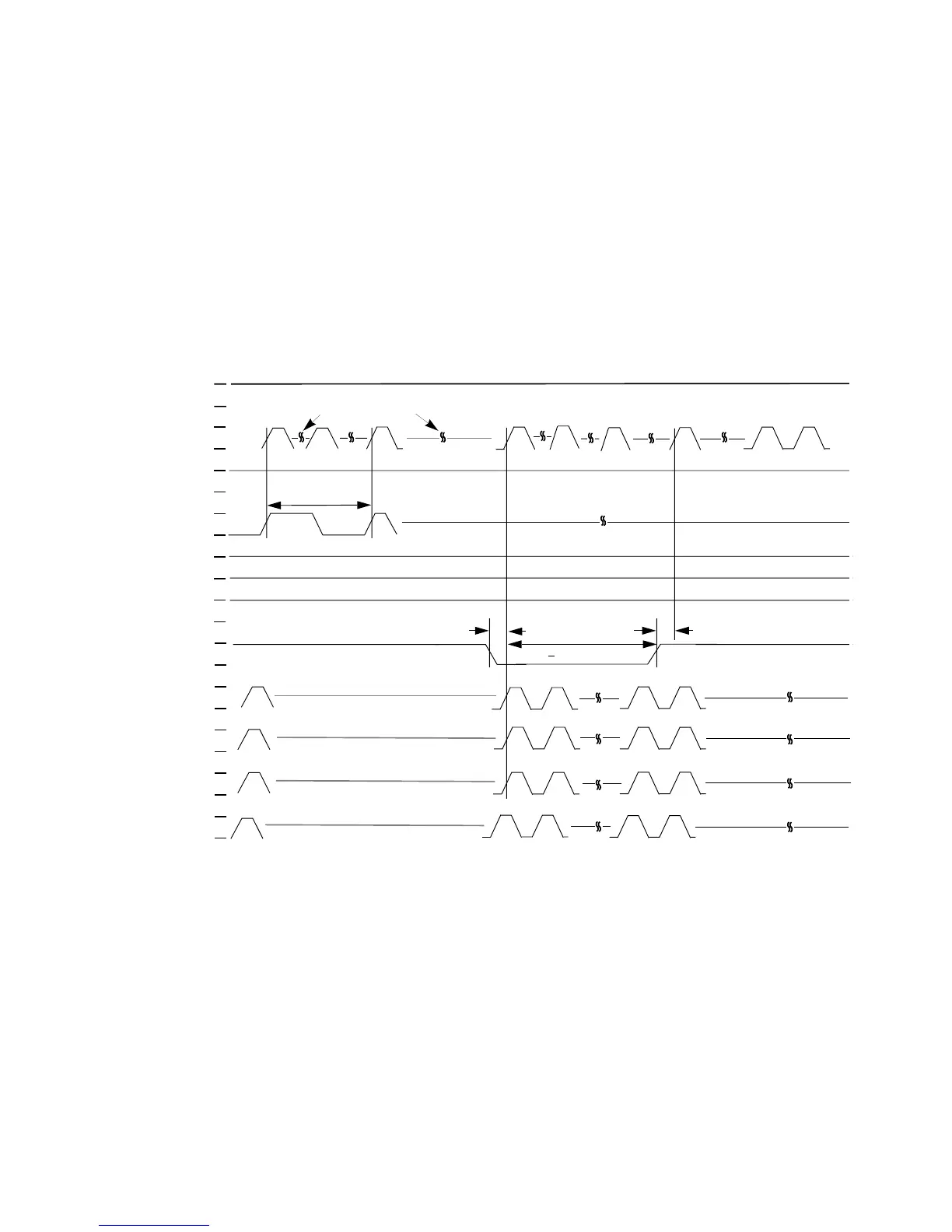

Figure 9-3 Warm Reset

MasterClock

VCCOK

ModeClock

ModeIn

ColdReset*

Reset*

MasterOut

SyncOut

TClock

RClock

Vcc

TDS

TDS

256 MClk cycles

> 64 MClk cycles

(MClk)

Warm Reset

Undefined

Undefined

Undefined

Undefined

Wavy lines indicate one or more identical

cycles, not shown due to space constraints
