Error Checking and Correcting
Cross-Coupled Checking Configuration
In the Cross-Coupled Checking configuration, one of the R4400 processors
drives the data bus pins and is labelled the System Interface Master (mode
bits 42 and 18 = 10
2
). The other R4400 processor drives the ECC or parity
check pins on the same bus and is labelled the Secondary Cache Master
(mode bits 42 and 18 = 01
2
). This is shown in Figure 16-6.
Both processors monitor the buses and indicate a miscomparison by
asserting their respective Fault* signals. The Fault* signal indicates error
conditions not specifically covered by R4400 processor exceptions.
†

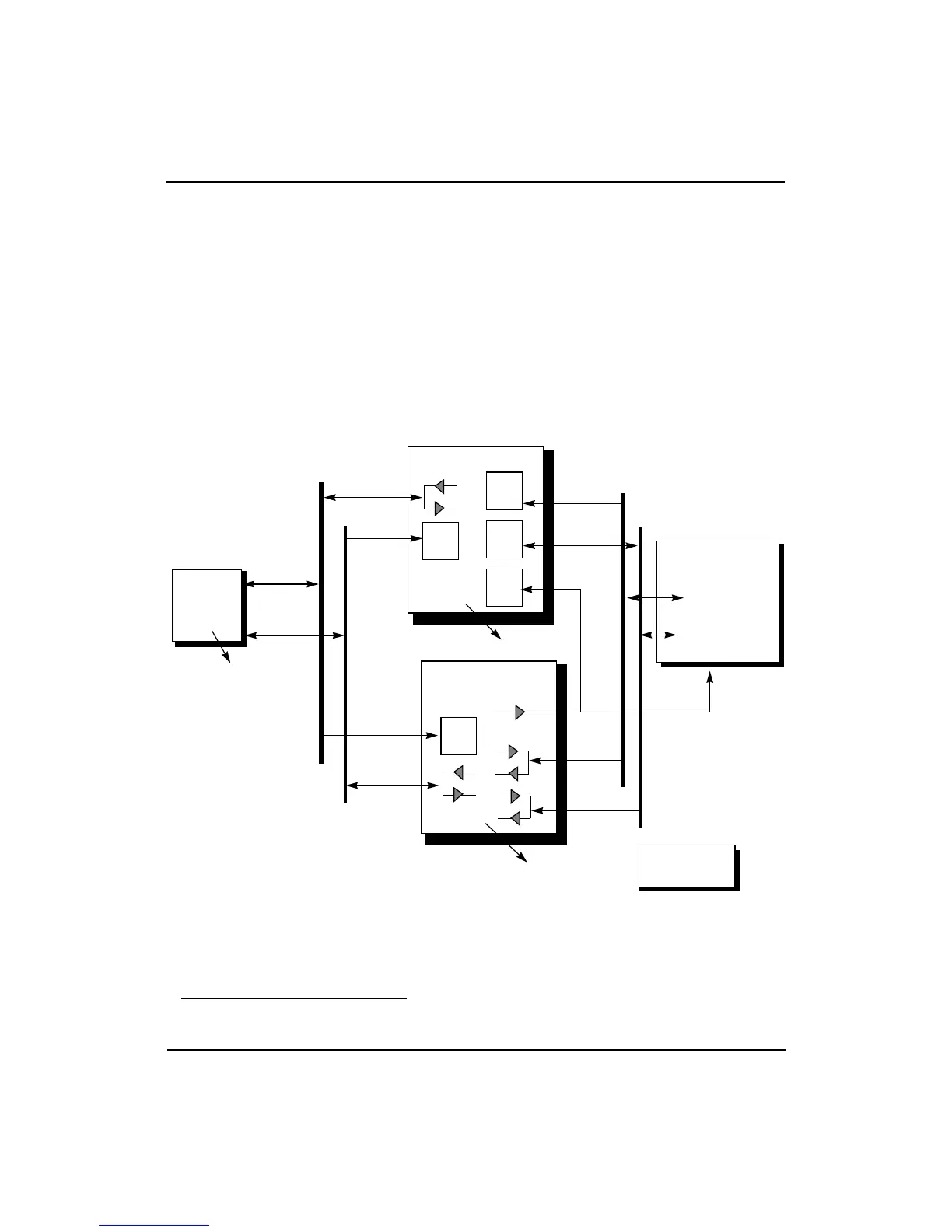

Figure 16-6 Cross-Coupled Configuration of Master/Checker Mode
