Chapter 10

236 MIPS R4000 Microprocessor User's Manual

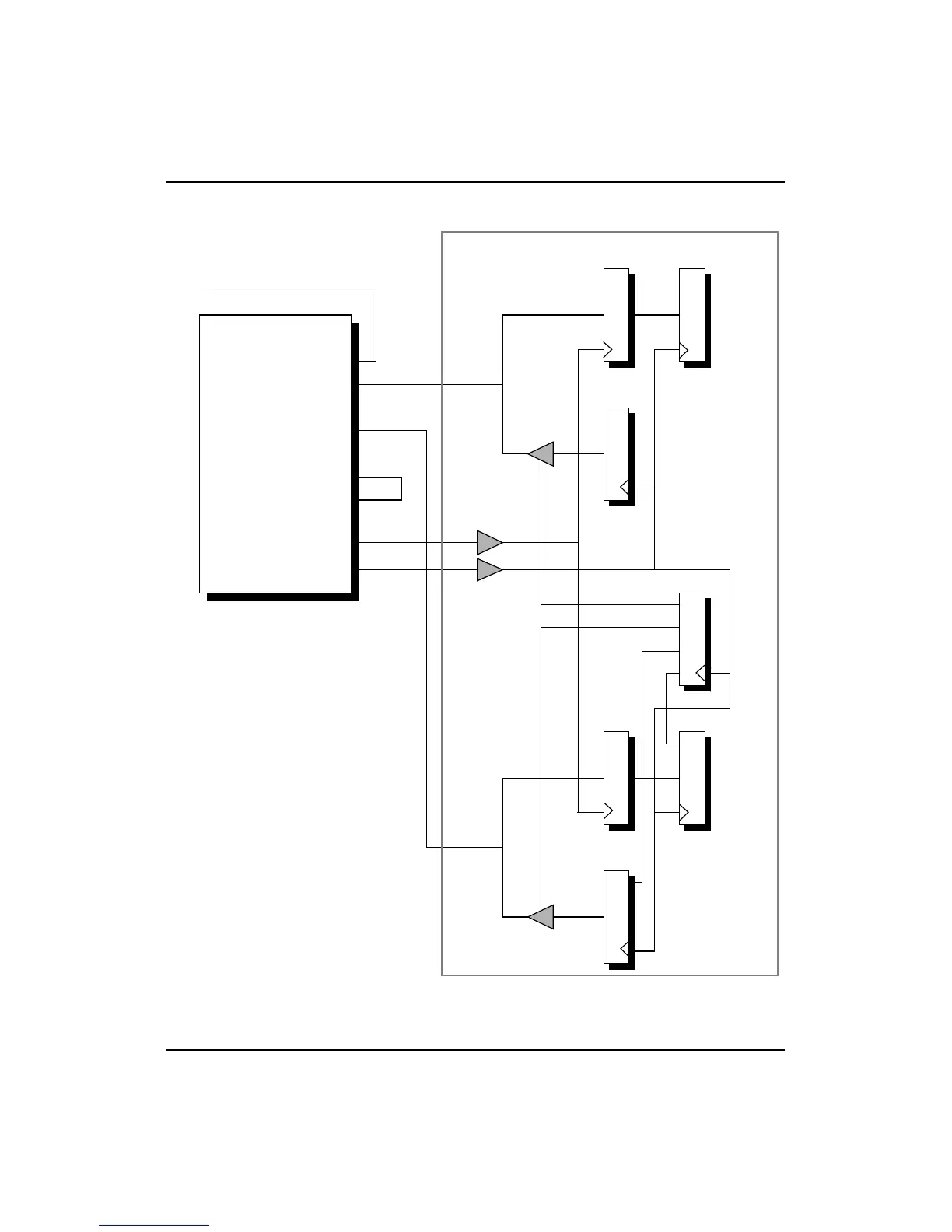

Figure 10-6 Gate-Array System without Phase Lock, using the R4000 Processor

MasterClock

R4000

TClock

RClock

SysAD

SysCmd

MasterClock

SyncOut

SyncIn

CE

CE

Gate

Array

Sampling

Register

Staging

Register

Sampling

Register

Staging

Register
