MIPS R4000 Microprocessor User's Manual 239

Clock Interface

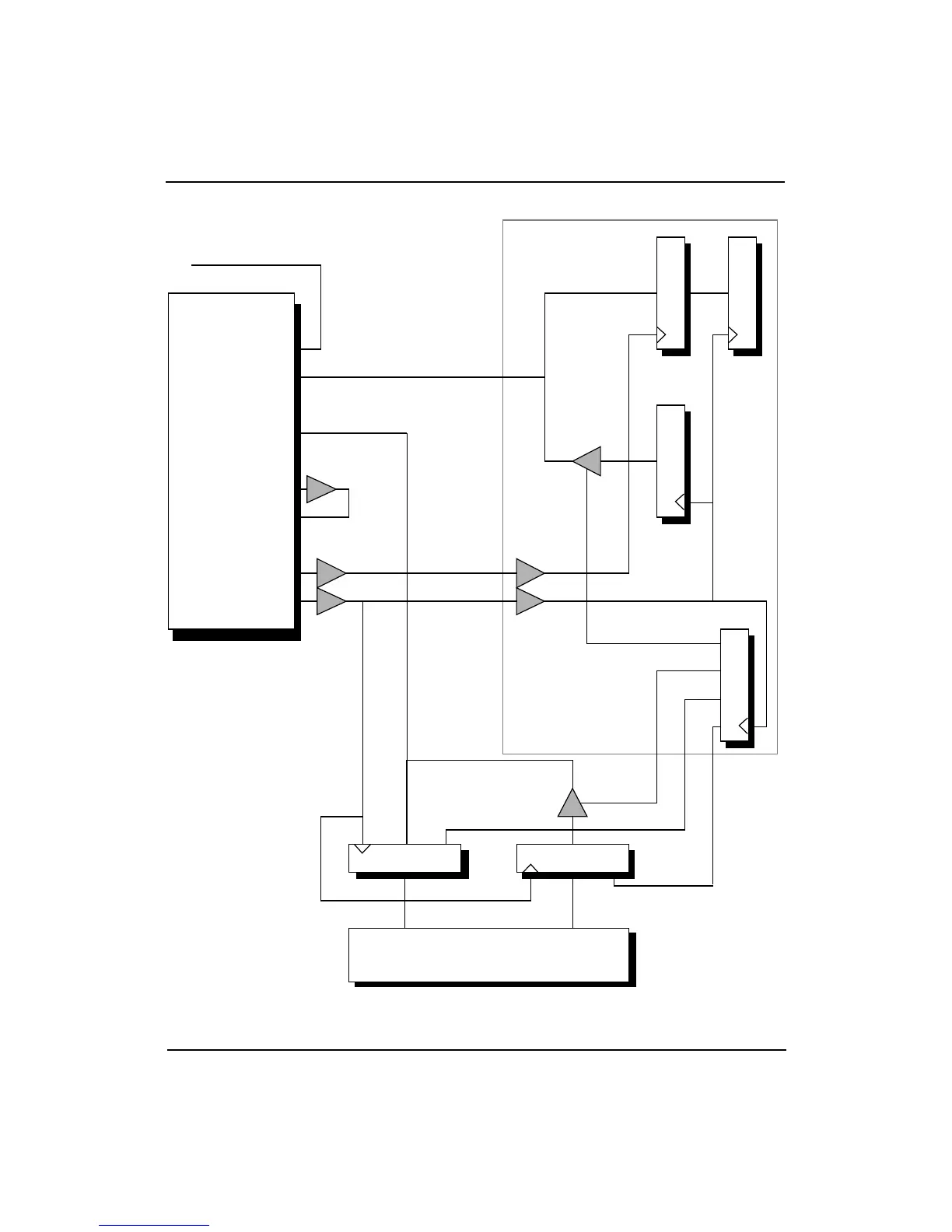

Figure 10-7 Gate Array and CMOS System without Phase Lock, using the R4000 Processor

Memory

Memory

CE CE

Control

MasterClock

Gate

Array

Sample

Registers

R4000

TClock

RClock

SysAD

SysCmd

MasterClock

SyncOut

SyncIn
