3. Visually check, and reseat if necessary, all of the connectors on the front of the
Backplane Connect Board (BCB). See 1, 2, and 3 in Figure 7-12 on page
7-34.
a66mi082
2
1

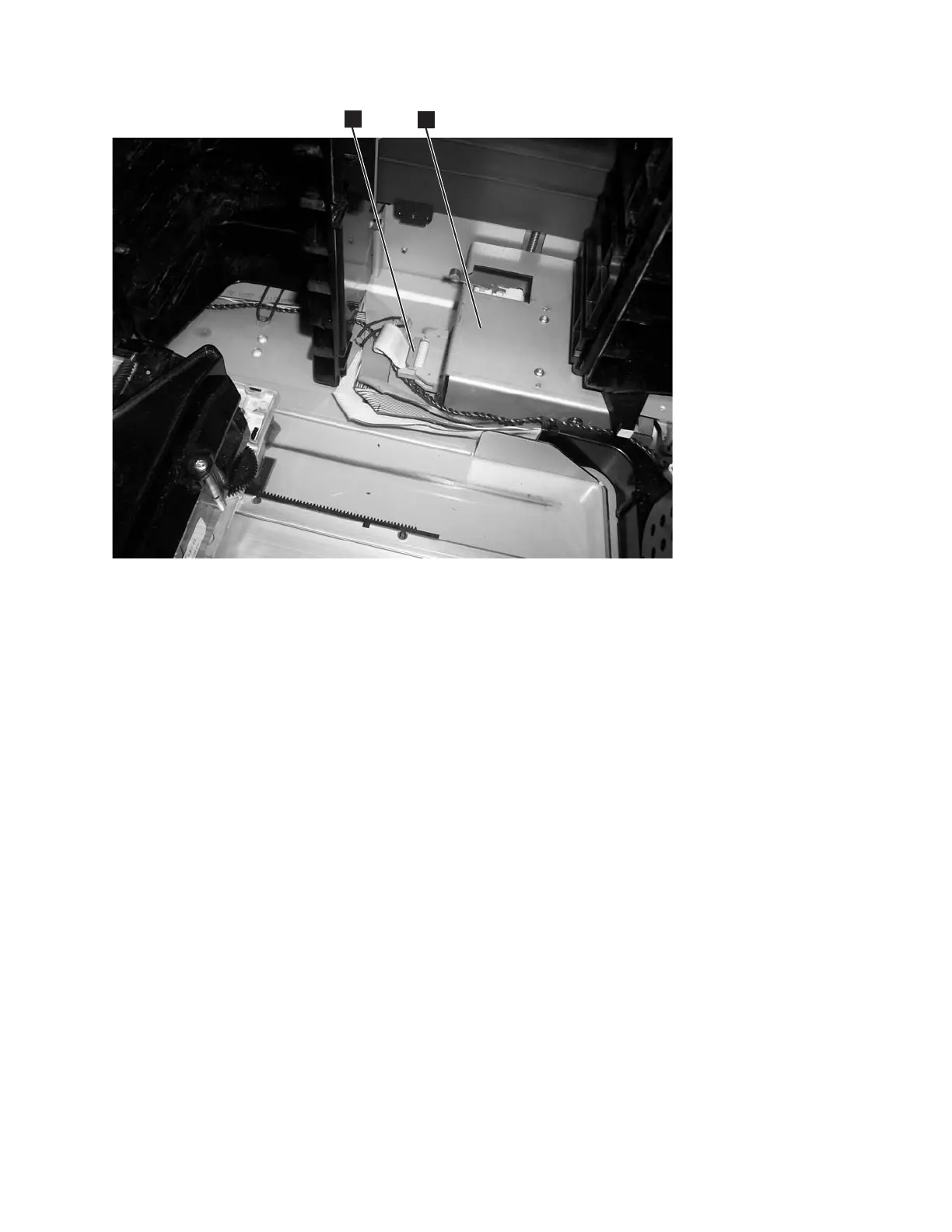

Figure 7-11. I/O Station lock assembly connector (top cover removed)
