IBM TS3310 User Manual

Storage Columns
Storage columns within the library store cartridges while they are not being
utilized by a drive. The library contains six storage columns. One of those six
columns is the I/O Station.
Robot Assembly Designs
The Picker (robotic arm) has fingers that enable it to grab tape cartridges and move
them to and from the I/O Station, storage slots, and drives. A Bar Code Scanner
located inside the Picker, reads each cartridge bar code label and the fiducial labels
that identify the types of cartridge magazines and tape drives installed in the
library.
The Robot Assembly has two designs, referred to as Y-Axis/Picker Assembly and
M2 Robot Assembly. The differences are explained in this section.
a66ug032

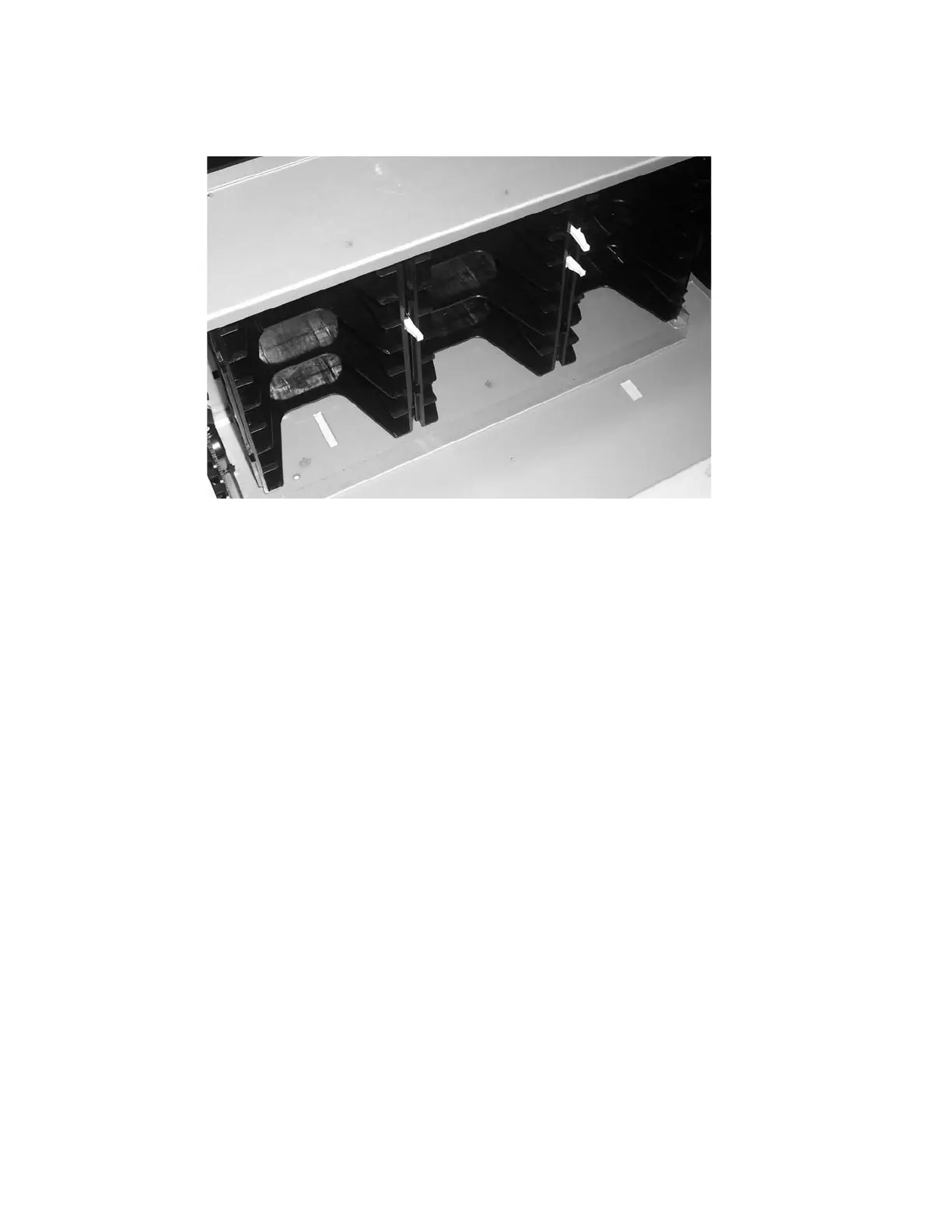

Figure 2-4. Storage columns
2-8 TS3310 Tape Library Maintenance Information

IBM TS3310 Specifications

General

Form Factor	Rack-mountable
Tape Technology	LTO Ultrium
Product Type	Tape Library
Interface	Fibre Channel
Expansion	Expandable with additional modules
Supported Tape Technology	LTO Ultrium 5, LTO Ultrium 6
Weight	120 lb (54.4 kg) (fully configured)
Power Supply	Dual redundant power supplies
Operating Temperature	41°F to 95°F (5°C to 35°C)
Non-operating Temperature	-40°F to 140°F (-40°C to 60°C)
Humidity	20% to 80% non-condensing
